Multi-function unit (MFU) – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1996
- Section
- Circuit diagram › Multi-function unit (MFU) – circuit diagram
‹ Prev Multi-function unit (MFU) – circuit diagramNext › Multi-function unit (MFU) – circuit diagram
Multi-function unit (MFU)Multi-function unit (MFU) – circuit diagram

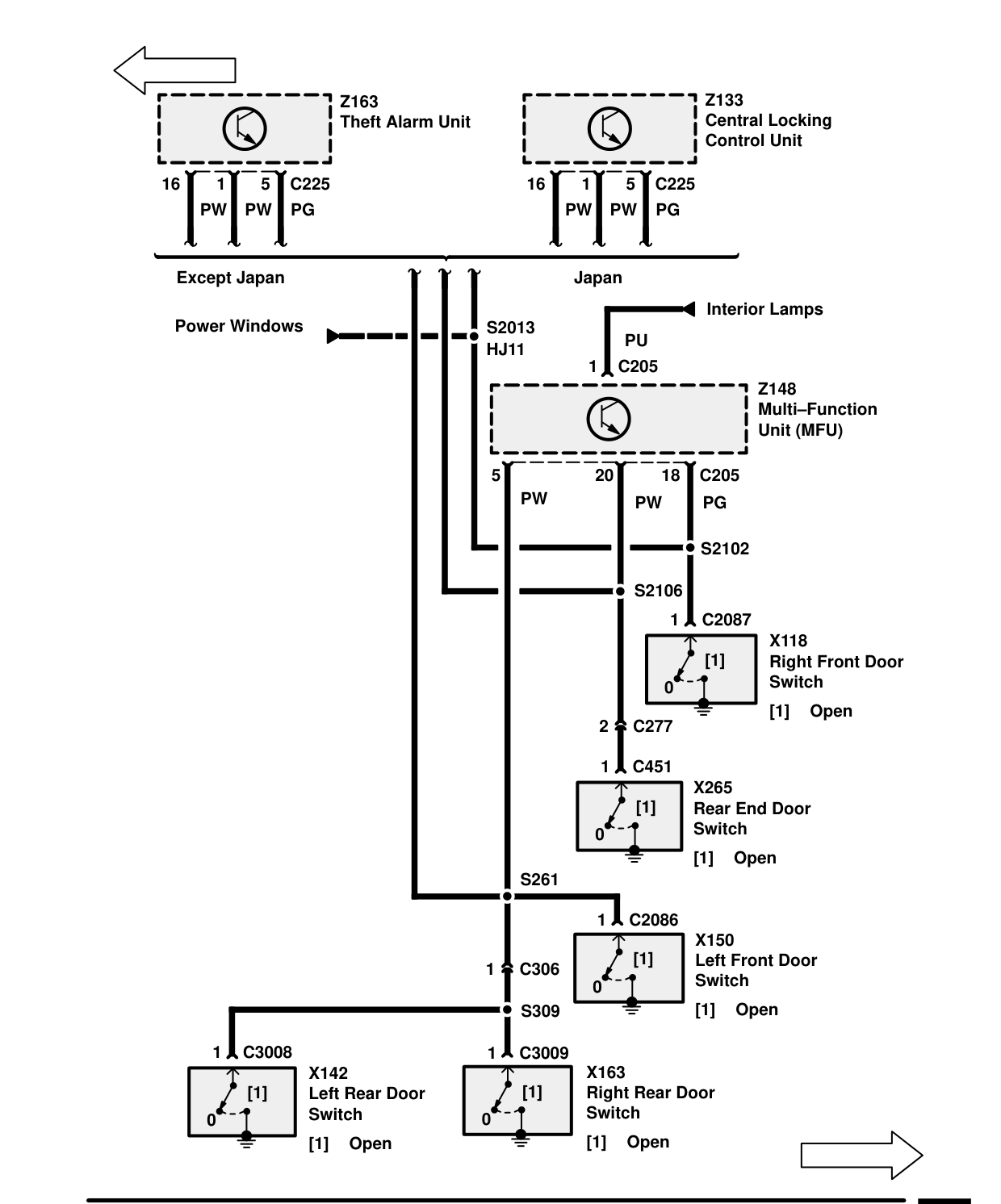

MULTI-FUNCTION UNIT (MFU) – CIRCUIT DIAGRAM
Components on this page
- X118 Right Front Door Switch
- X142 Left Rear Door Switch
- X150 Left Front Door Switch
- X163 Right Rear Door Switch
- X265 Rear End Door Switch
- Z133 Central Locking Control Unit
- Z148 Multi-Function Unit (MFU)
- Z163 Theft Alarm Unit
