Power seatsPower seats – circuit diagram

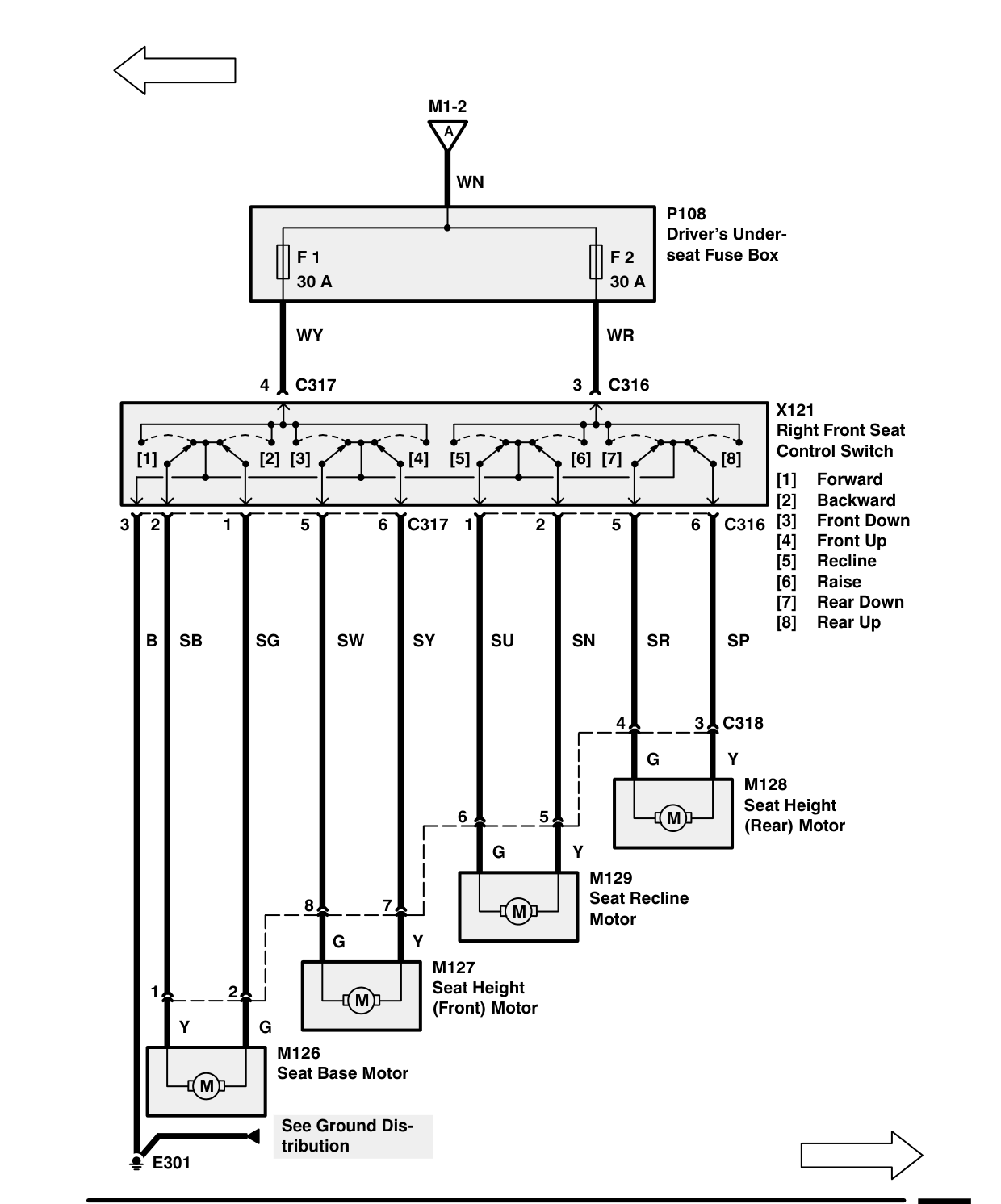

POWER SEATS – CIRCUIT DIAGRAM
Components on this page
- M126 Seat Base Motor
