Radio (Japan) – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1996
- Section
- Circuit diagram › Radio (Japan) – circuit diagram
Radio (Japan)Radio (Japan) – circuit diagram

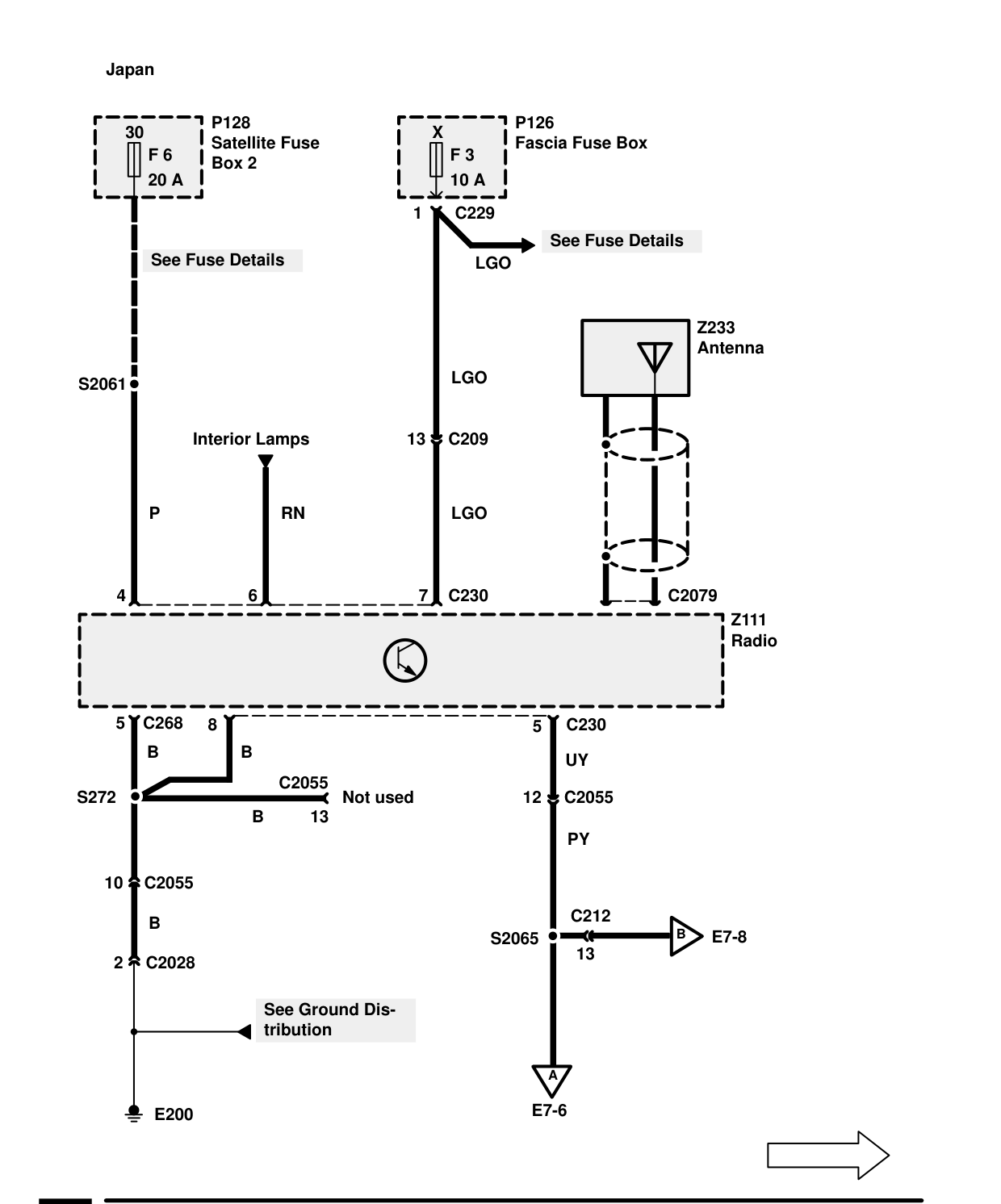

RADIO (JAPAN) – CIRCUIT DIAGRAM
Components on this page
- P126 Fascia Fuse Box
- P128 Satellite Fuse Box 2
- Z111 Radio
- Z233 Antenna
