Warnings and indicators – circuit diagram
- Make
- Land Rover
- Model
- Discovery Electrical Troubleshooting Manual
- Year
- 1996
- Section
- Circuit diagram › Warnings and indicators – circuit diagram
‹ Prev Warnings and indicators – circuit diagramNext › Warnings and indicators – warnings and indicators (Japan)
Warnings and indicatorsWarnings and indicators – circuit diagram

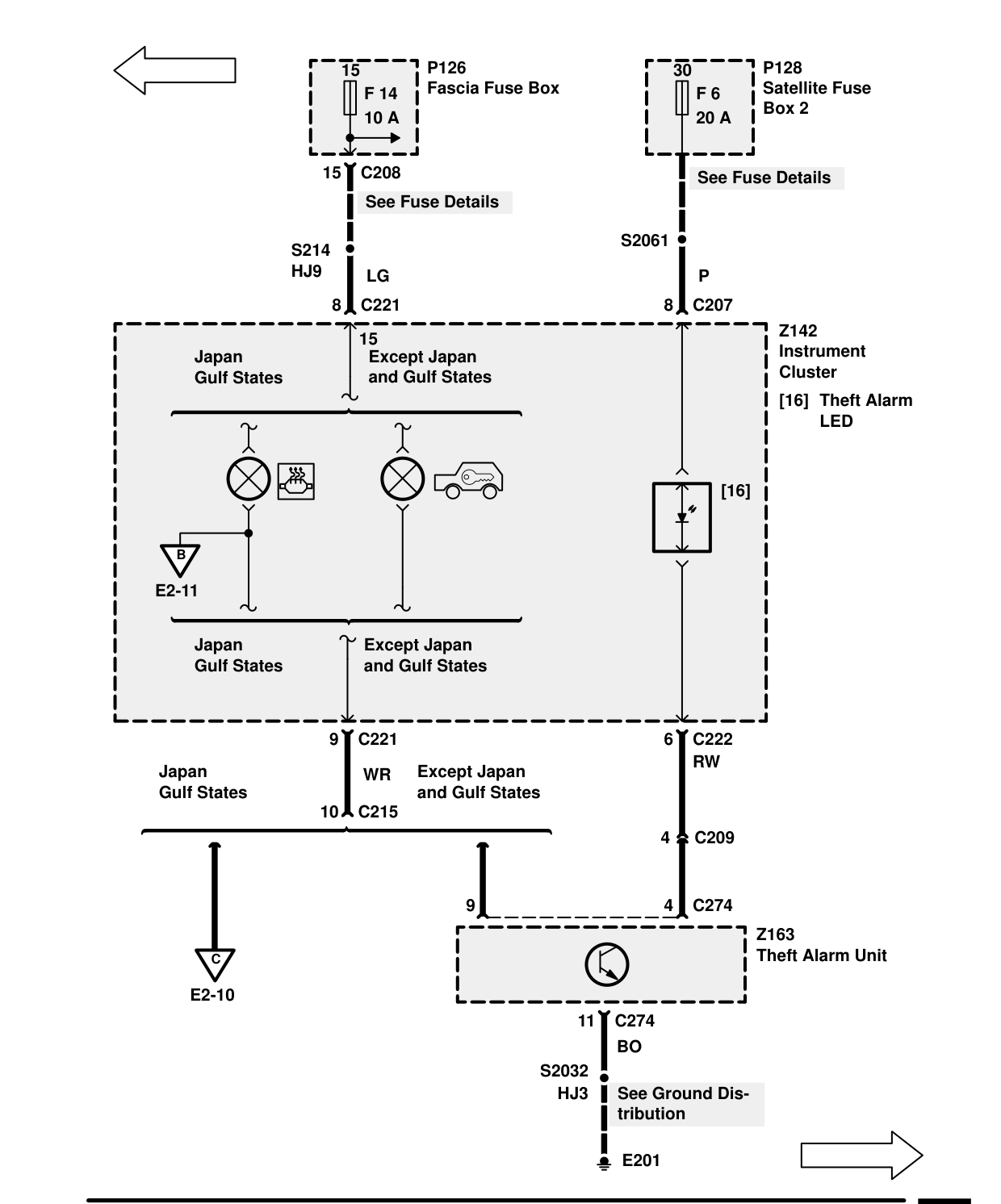

WARNINGS AND INDICATORS – CIRCUIT DIAGRAM
Components on this page
- P126 Fascia Fuse Box
- P128 Satellite Fuse Box 2
- Z142 Instrument Cluster
- Z163 Theft Alarm Unit
