Colour: BLACK Gender: Female
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0040 Diagnostic socket - RHD › Colour: BLACK Gender: Female
ConnectorsColour: BLACK Gender: Female
| Cav 4 | Col B | Cct ALL |
| 5 | B | ALL |
| 7 | K | ALL |
| 13 | R | 14 |
| 16 | P | ALL |

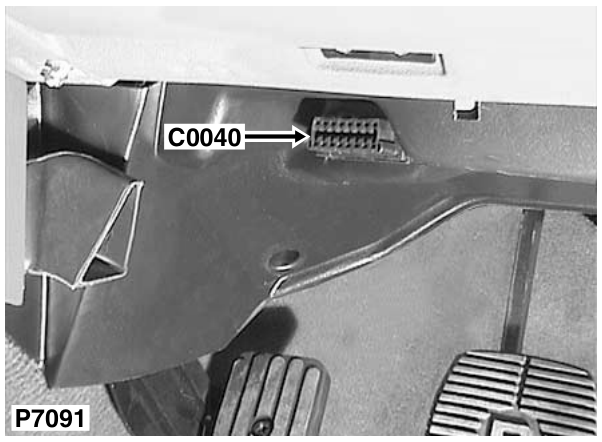

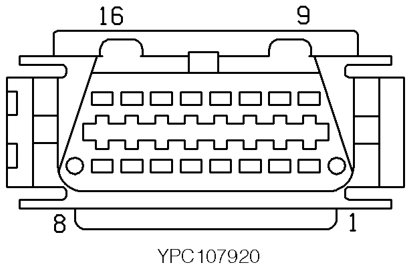

Description: Diagnostic socket - RHD Location: Under LH side of fascia
Colour: BLACK Gender: Female
