Description: Switch-Lighting
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0041 Switch-Lighting › Description: Switch-Lighting
ConnectorsDescription: Switch-Lighting
| Cav 2 | Col UR | Cct ALL |
| 3 | NG | ALL |
| 4 | R | ALL |
| 5 | UW | ALL |
| 6 | NP | ALL |

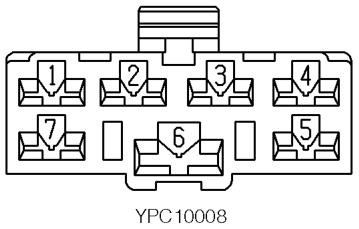

Description: Switch-Lighting

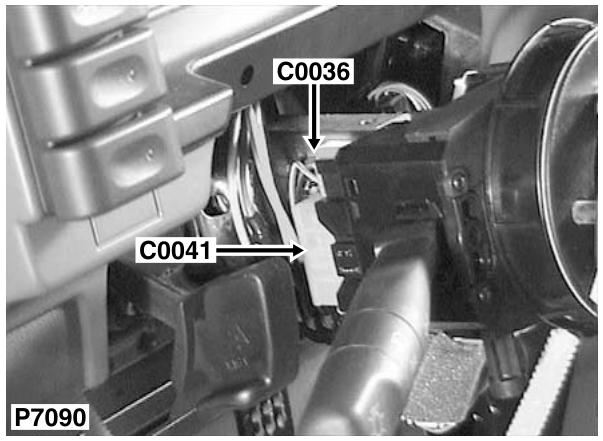

Location: LH side of steering column
Colour: NATURAL Gender: Female
