Description: Header - LHD
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0285 Header - LHD › Description: Header - LHD
ConnectorsDescription: Header - LHD
| Cav 1 | Col PU | Cct ALL |
| 2 | PU | ALL |
| 3 | PU | 37 |
| 4 | PU | 34 |
| 5 | LGO | ALL |
| 6 | LGO | ALL |
| 7 | LGO | ALL |
| 11 | RU | 24 |
| 12 | RU | 24 |
| 13 | RU | 24 |
| 14 | SW | ALL |
| 15 | SW | ALL |
| 16 | SW | ALL |
| 17 | UP | ALL |
| 18 | UP | ALL |
| 19 | UP | ALL |
| 20 | UP | ALL |

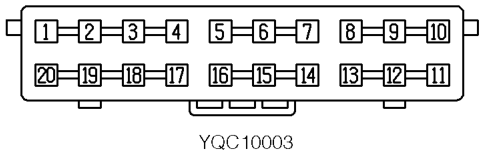

Description: Header - LHD

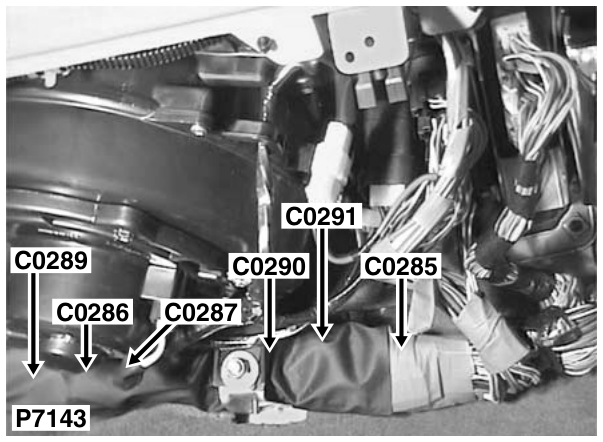

Location: Under RH side of fascia
Colour: ORANGE Gender: Female
