Description: Header - RHD
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0285 Header - RHD › Description: Header - RHD
ConnectorsDescription: Header - RHD
| Cav 1 | Col PLG | Cct ALL |
| 2 | PLG | 13 |
| 3 | PLG | ALL |
| 4 | PLG | ALL |
| 5 | PLG | ALL |
| 6 | PLG | ALL |
| 7 | PW | ALL |
| 8 | PW | ALL |
| 9 | PW | 13 |
| 10 | PW | ALL |
| 11 | KO | ALL |
| 12 | KO | ALL |
| 13 | KO | ALL |
| 14 | KO | ALL |
| 15 | KS | ALL |
| 16 | KS | ALL |
| 17 | KS | ALL |
| 18 | KS | ALL |
| 19 | KS | ALL |
| 20 | KS | ALL |

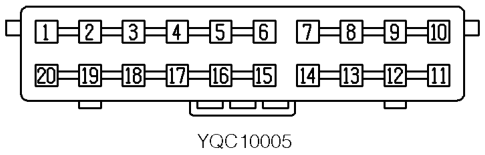

Description: Header - RHD

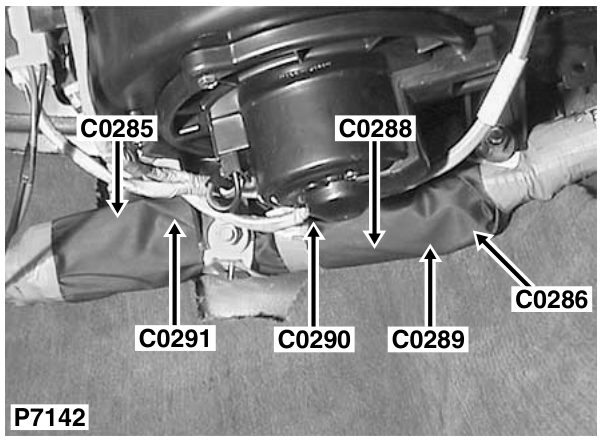

Location: Under LH side of fascia
Colour: BLUE Gender: Female
