Description: Header - LHD
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0286 Header - LHD › Description: Header - LHD
ConnectorsDescription: Header - LHD
| Cav 1 | Col B | Cct ALL |
| 2 | B | ALL |
| 3 | B | 40 |
| 4 | B | ALL |
| 5 | B | 3 |
| 7 | B | ALL |
| 8 | B | 37 |
| 9 | LGW | ALL |
| 10 | LGW | ALL |
| 11 | LGW | ALL |
| 12 | LGW | ALL |
| 13 | K | 3 |
| 14 | K | ALL |
| 15 | K | 10 |
| 16 | K | ALL |
| 17 | K | ALL |
| 18 | K | 9 |
| 19 | K | ALL |
| 20 | K | ALL |

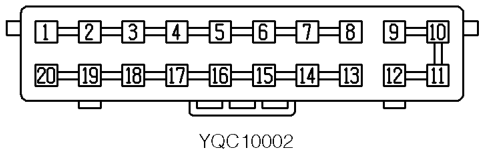

Description: Header - LHD

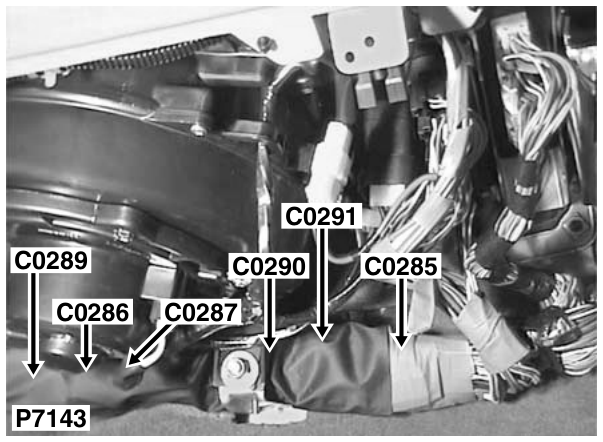

Location: Under RH side of fascia
Colour: GREY Gender: Female
