Description: Header - RHD

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0286 Header - RHD › Description: Header - RHD

ConnectorsDescription: Header - RHD

Cav 1	Col RB	Cct ALL
3	RB	ALL
4	RB	ALL
5	RB	ALL
6	RB	ALL
7	RB	ALL
9	PO	ALL
10	PO	ALL
11	PO	ALL
13	K	3
14	K	10
15	K	ALL
16	K	ALL
17	K	9
18	K	ALL
19	K	ALL
20	K	ALL

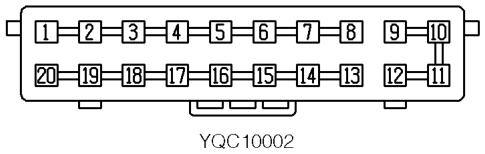

Description: Header - RHD

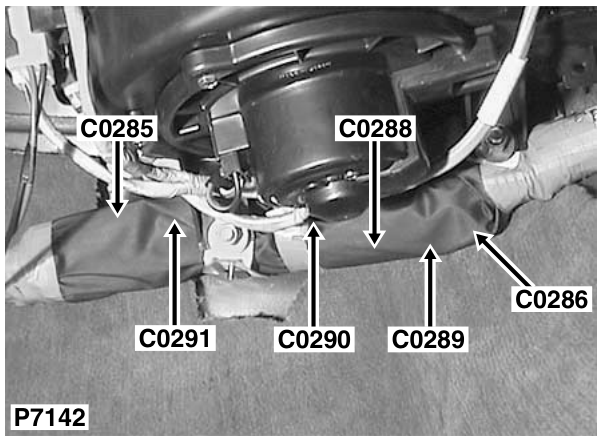

Location: Under LH side of fascia

Colour: GREY Gender: Female

05 General
