Description: Header - LHD

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0287 Header - LHD › Description: Header - LHD

ConnectorsDescription: Header - LHD

Cav 1	Col GP	Cct ALL
2	GP	ALL
3	GP	2
4	GP	ALL
5	GP	ALL
6	GP	3
7	PW	ALL
8	PW	13
9	PW	ALL
10	PW	ALL
11	PN	ALL
12	PN	34
12	PB	37
13	P	37
14	NS	40
16	GN	ALL
17	GN	10
18	GN	ALL
19	GN	ALL
20	GN	1

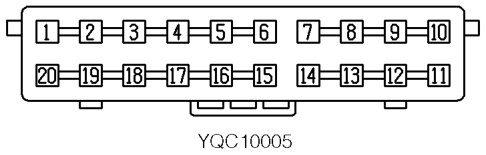

Description: Header - LHD

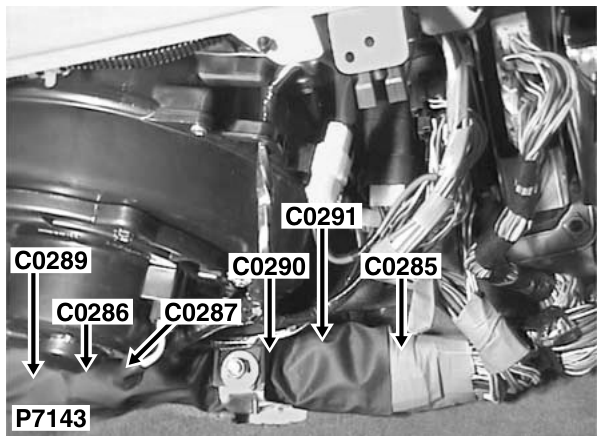

Location: Behind RH side of fascia

Colour: BLUE Gender: Female

05 General
