Description: Header - RHD

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0287 Header - RHD › Description: Header - RHD

ConnectorsDescription: Header - RHD

Cav 1	Col NY	Cct 2
2	NY	2
3	NY	14
5	WP	2
6	WP	2
7	WP	2
8	BY	2
9	BY	2
10	BY	2
11	BG	2
12	BG	2
13	BG	2
14	BW	2
15	BW	2
16	BW	2
18	W	2
19	W	2
20	W	2

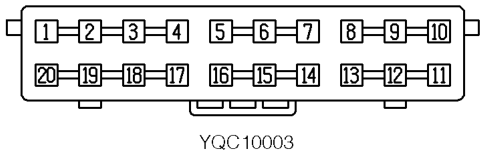

Description: Header - RHD

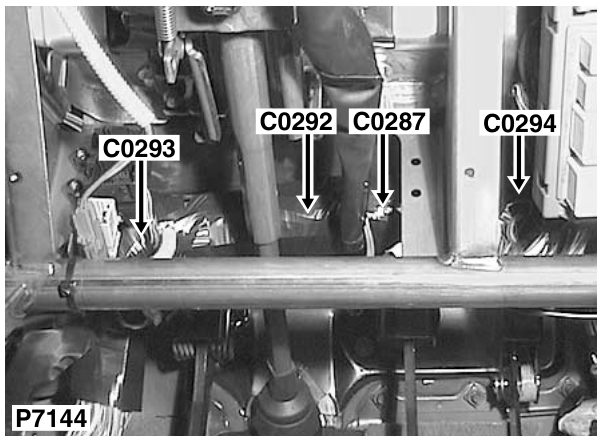

Location: Behind RH side of fascia

Colour: ORANGE Gender: Female
