Description: Header - RHD
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0288 Header - RHD › Description: Header - RHD
ConnectorsDescription: Header - RHD
| Cav 2 | Col B | Cct ALL |
| 5 | B | ALL |
| 6 | B | ALL |
| 8 | B | ALL |
| 9 | RK | ALL |
| 10 | RK | ALL |
| 11 | RK | 2 |
| 12 | RK | 3 |
| 13 | B | ALL |
| 15 | B | 9 |
| 16 | B | ALL |
| 17 | B | ALL |
| 19 | B | ALL |
| 20 | B | ALL |

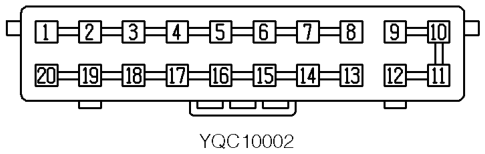

Description: Header - RHD

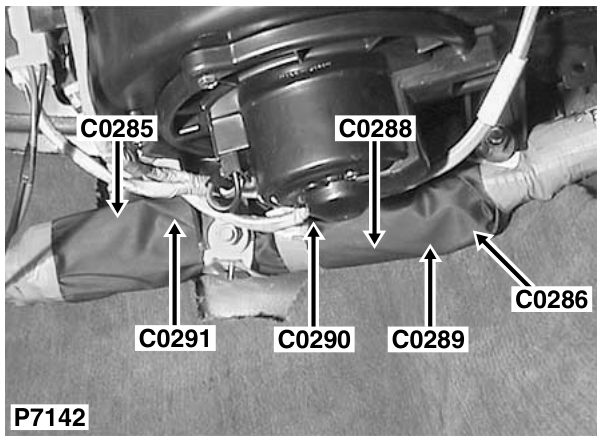

Location: Behind LH side of fascia
Colour: GREY Gender: Female
