Description: Header - LHD

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0289 Header - LHD › Description: Header - LHD

ConnectorsDescription: Header - LHD

Cav 1	Col GW	Cct ALL
2	GW	ALL
3	GW	ALL
4	GW	ALL
5	GR	ALL
6	GR	ALL
7	GR	ALL
8	GR	ALL
9	RO	ALL
10	RO	ALL
12	RO	ALL
13	P	34
14	P	ALL
15	P	34
16	P	ALL
17	P	37
18	P	ALL
19	P	34
20	P	37

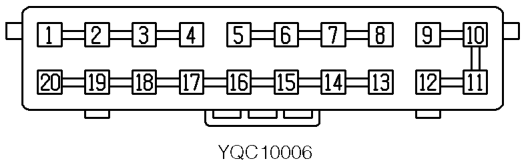

Description: Header - LHD

Location: Behind RH side of fascia

Colour: GREEN Gender: Female
