Description: Header - RHD

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0289 Header - RHD › Description: Header - RHD

ConnectorsDescription: Header - RHD

Cav 1	Col GW	Cct ALL
2	GW	ALL
3	GW	ALL
4	GW	ALL
5	GK	40
6	GK	ALL
7	GK	15
8	WP	ALL
9	WP	ALL
10	WP	9
11	LGO	ALL
12	LGO	ALL
13	LGO	ALL
14	UY	ALL
15	UY	ALL
16	UY	ALL
17	GR	ALL
18	GR	ALL
19	GR	ALL
20	GR	ALL

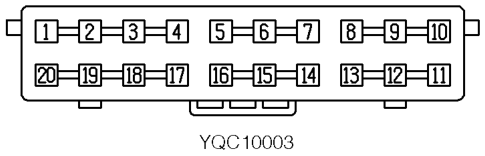

Description: Header - RHD

Location: Behind LH side of fascia

Colour: ORANGE Gender: Female

05 General
