Description: Header - LHD
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0290 Header - LHD › Description: Header - LHD
ConnectorsDescription: Header - LHD
| Cav 1 | Col RK | Cct ALL |
| 2 | RK | ALL |
| 3 | RK | 2 |
| 4 | RK | 3 |
| 5 | GK | 40 |
| 6 | GK | 15 |
| 7 | GK | ALL |
| 9 | YS | 2 |
| 10 | YS | 3 |
| 11 | YS | 15 |
| 13 | KG | ALL |
| 14 | KG | ALL |
| 15 | KG | 10 |
| 16 | KG | 3 |
| 17 | KG | 3 |
| 18 | KG | 2 |
| 19 | KG | ALL |

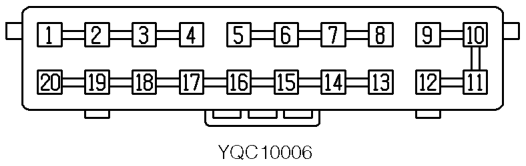

Description: Header - LHD

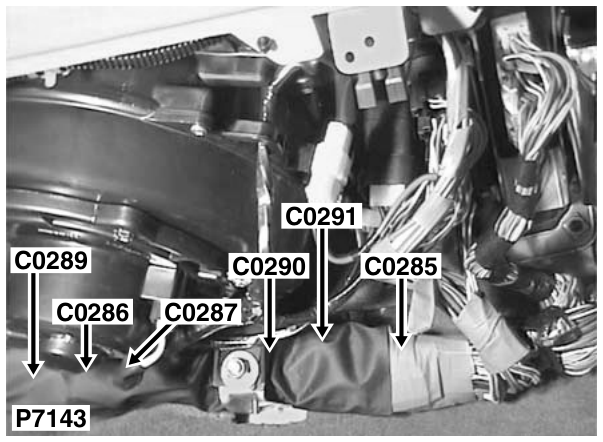

Location: Behind RH side of fascia
Colour: GREEN Gender: Female
