Description: Header - RHD

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0290 Header - RHD › Description: Header - RHD

ConnectorsDescription: Header - RHD

Cav 1	Col GP	Cct ALL
2	GP	3
3	GP	ALL
4	GP	ALL
5	GP	ALL
6	GP	2
7	RO	ALL
8	RO	ALL
10	RO	ALL
11	KR	ALL
12	KR	ALL
13	KR	ALL
14	KR	ALL
15	KG	ALL
16	KG	ALL
17	KG	ALL
18	KG	ALL
19	KG	10

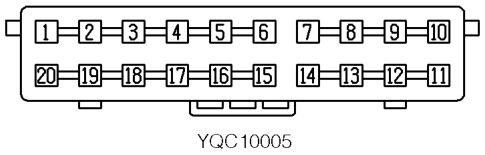

Description: Header - RHD

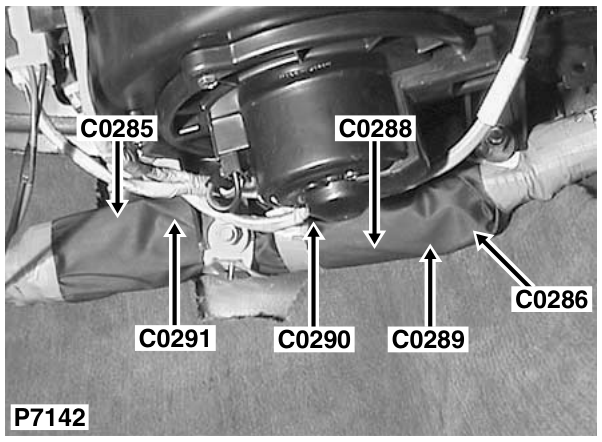

Location: Behind LH side of fascia

Colour: BLUE Gender: Female
