Description: Header - LHD
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0291 Header - LHD › Description: Header - LHD
ConnectorsDescription: Header - LHD
| Cav 1 | Col PLG | Cct 13 |
| 2 | PLG | ALL |
| 3 | PLG | ALL |
| 4 | PLG | ALL |
| 5 | PLG | ALL |
| 6 | PLG | ALL |
| 7 | WS | ALL |
| 8 | WS | ALL |
| 9 | WS | 10 |
| 10 | WS | ALL |
| 11 | PO | ALL |
| 12 | PO | ALL |
| 13 | PO | ALL |
| 14 | PO | 38 |
| 15 | RN | ALL |
| 17 | RN | ALL |
| 18 | RN | ALL |
| 19 | RN | ALL |
| 20 | RN | ALL |

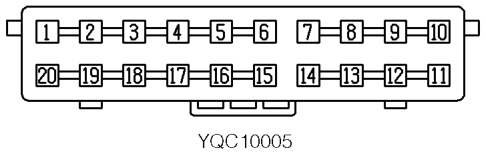

Description: Header - LHD

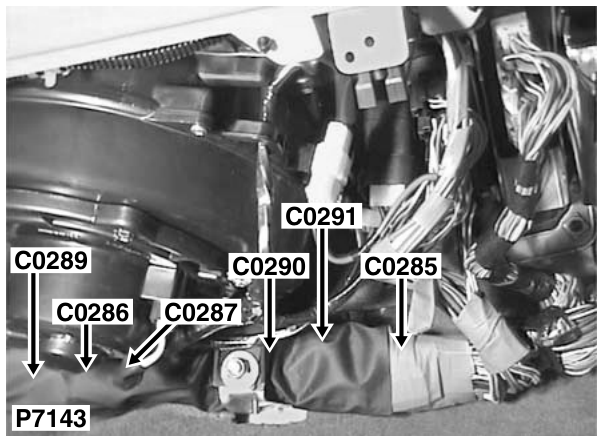

Location: Behind RH side of fascia
Colour: BLUE Gender: Female
