Description: Header - LHD

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0292 Header - LHD › Description: Header - LHD

ConnectorsDescription: Header - LHD

Cav 1	Col KS	Cct ALL
2	KS	ALL
3	KS	ALL
4	KS	ALL
5	KS	ALL
6	KS	ALL
7	KR	ALL
8	KR	ALL
9	KR	ALL
10	KR	ALL
11	GS	ALL
12	GS	ALL
13	GS	ALL
14	GS	ALL
15	KP	ALL
16	KP	ALL
17	KP	ALL
18	KP	ALL
19	KP	ALL
20	KP	ALL

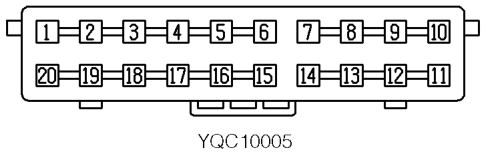

Description: Header - LHD

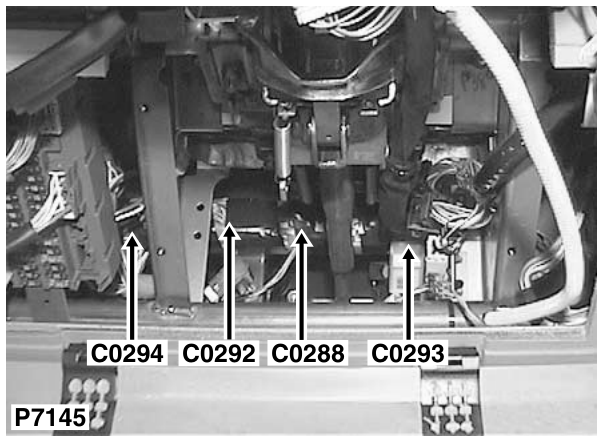

Location: Behind LH side of fascia

Colour: BLUE Gender: Female

05 General
