Description: Header - RHD

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0292 Header - RHD › Description: Header - RHD

ConnectorsDescription: Header - RHD

Cav 1	Col GS	Cct ALL
2	GS	ALL
3	GS	ALL
4	GS	ALL
5	PB	ALL
6	PB	9
7	NS	40
8	NS	ALL
9	NS	ALL
10	PB	ALL
11	P	ALL
14	SW	ALL
15	SW	ALL
16	SW	ALL
18	SK	ALL
19	SK	ALL
20	SK	ALL

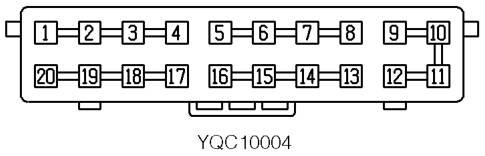

Description: Header - RHD

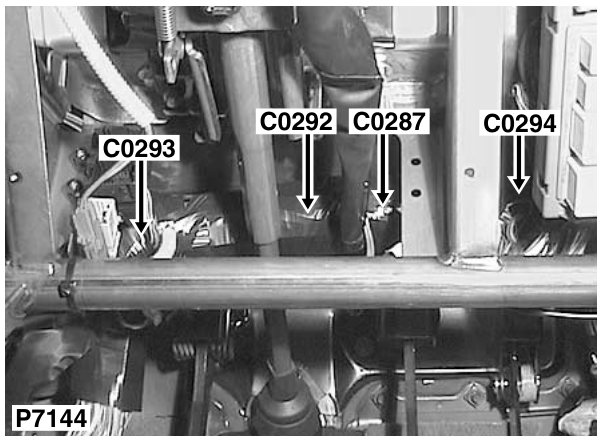

Location: Behind RH side of fascia

Colour: YELLOW Gender: Female
