Description: Header - LHD
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0293 Header - LHD › Description: Header - LHD
ConnectorsDescription: Header - LHD
| Cav 1 | Col BLG | Cct ALL |
| 2 | BLG | ALL |
| 3 | BLG | 9 |
| 4 | UY | ALL |
| 5 | UY | 37 |
| 6 | UY | ALL |
| 7 | SK | ALL |
| 8 | SK | ALL |
| 9 | SK | ALL |
| 11 | LGS | ALL |
| 12 | LGS | ALL |
| 13 | LGS | ALL |
| 15 | KO | ALL |
| 16 | KO | ALL |
| 17 | KO | ALL |
| 18 | KO | ALL |

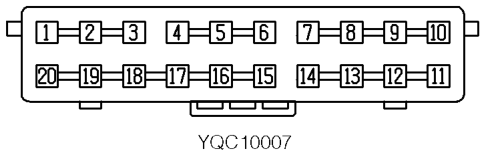

Description: Header - LHD

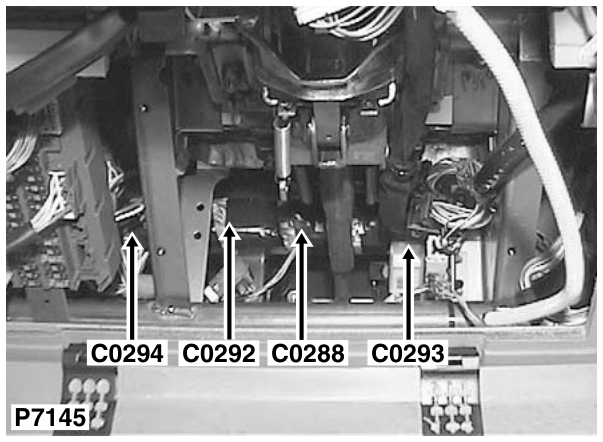

Location: Behind LH side of fascia
Colour: BLACK Gender: Female
