Description: Header - RHD
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0293 Header - RHD › Description: Header - RHD
ConnectorsDescription: Header - RHD
| Cav 1 | Col UP | Cct ALL |
| 2 | UP | ALL |
| 3 | UP | ALL |
| 4 | UP | ALL |
| 5 | RU | 9 |
| 6 | RU | ALL |
| 7 | RU | ALL |
| 8 | RN | ALL |
| 9 | RN | ALL |
| 10 | RN | ALL |
| 11 | LGS | ALL |
| 12 | LGS | ALL |
| 13 | LGS | ALL |
| 14 | BLG | ALL |
| 15 | BLG | ALL |
| 16 | BLG | 9 |
| 17 | RN | ALL |
| 18 | RN | ALL |
| 19 | RN | ALL |
| 20 | RN | ALL |

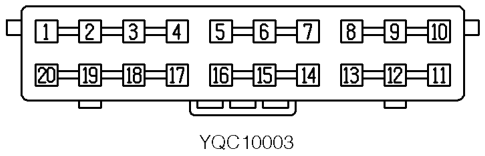

Description: Header - RHD

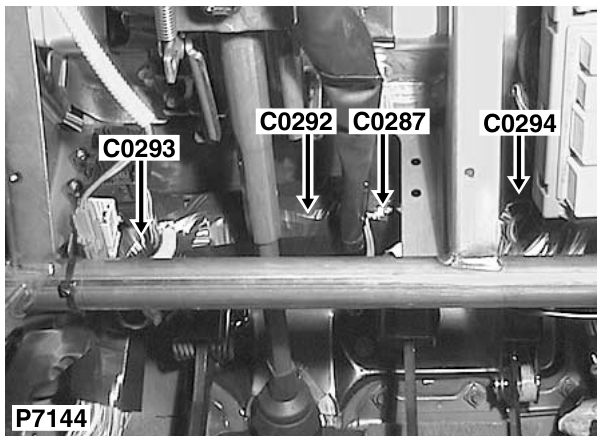

Location: Behind RH side of fascia
Colour: ORANGE Gender: Female
