Description: Header - LHD

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0294 Header - LHD › Description: Header - LHD

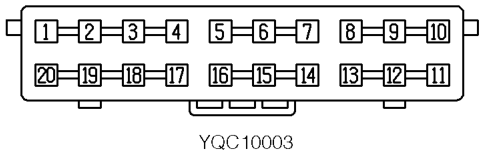

ConnectorsDescription: Header - LHD

Cav 1	Col WP	Cct 2
2	WP	2
3	WP	2
5	BY	2
6	BY	2
7	BY	2
8	W	2
9	W	2
10	W	2
11	BG	2
12	BG	2
13	BG	2
14	BW	2
15	BW	2
16	BW	2
17	NY	38
18	NY	2
19	NY	ALL
20	NY	2

Description: Header - LHD

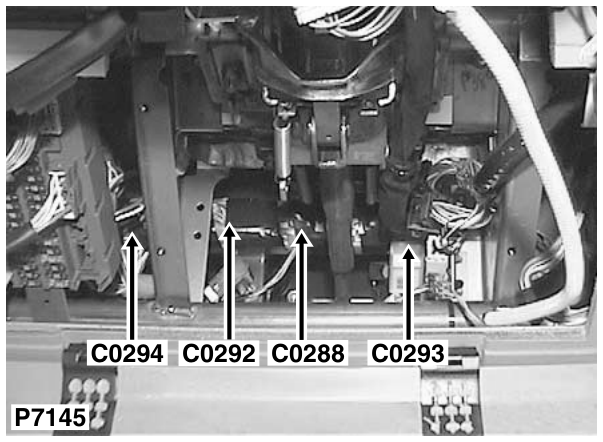

Location: Behind LH side of fascia

Colour: ORANGE Gender: Female

05 General
