Description: Header - RHD

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0294 Header - RHD › Description: Header - RHD

ConnectorsDescription: Header - RHD

Cav 1	Col GN	Cct ALL
2	GN	10
3	GN	ALL
4	GN	ALL
5	N	14
6	NY	14
9	PU	ALL
10	PU	ALL
11	PU	9
12	PU	ALL
13	P	ALL
14	P	9
15	P	ALL
16	P	ALL
17	P	ALL
19	P	ALL
20	P	9

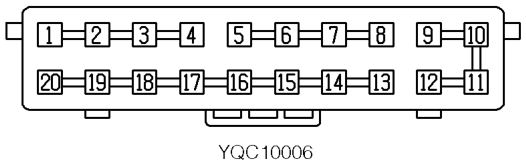

Description: Header - RHD

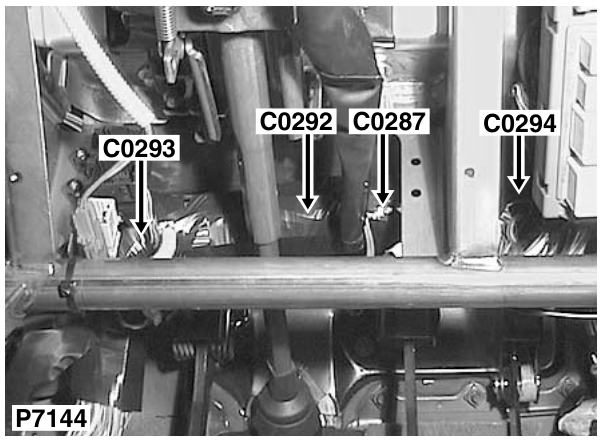

Location: Behind RH side of fascia

Colour: GREEN Gender: Female
