Description: Header

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0295 Header › Description: Header

ConnectorsDescription: Header

Cav 1	Col GR	Cct ALL
2	GR	ALL
3	GR	ALL
4	GP	ALL
5	GP	ALL
6	GP	ALL
7	RY	1
8	RY	1
9	RY	1
10	RY	1
11	GN	ALL
12	GN	ALL
13	GN	ALL
14	GN	ALL
15	RB	ALL
16	RB	ALL
17	RB	ALL
18	RB	ALL
19	RB	ALL
20	RB	ALL

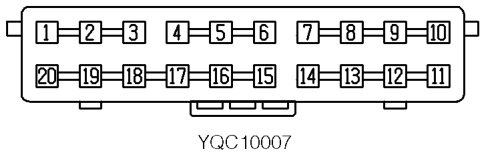

Description: Header

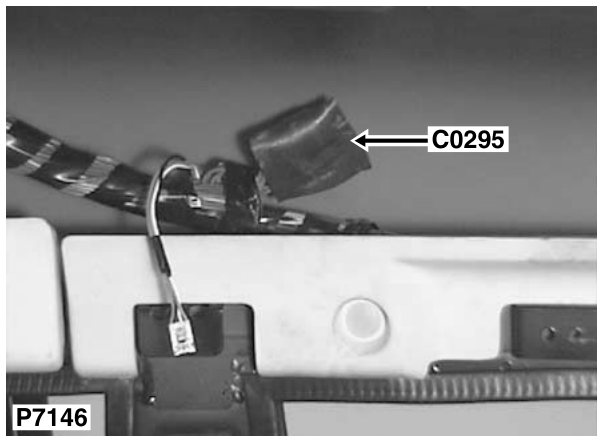

Location: Top of LH 'B' post, behind headlining

Colour: BLACK Gender: Female

05 General
