Description: Header
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0296 Header › Description: Header
ConnectorsDescription: Header
| Cav 1 | Col B | Cct 24 |
| 2 | B | 24 |
| 3 | B | 24 |
| 4 | Y | 24 |
| 5 | Y | 24 |
| 6 | Y | 24 |
| 7 | LGO | 24 |
| 8 | LGO | 24 |
| 9 | LGO | 24 |
| 10 | LGO | 24 |
| 11 | O | 24 |
| 12 | O | 24 |
| 13 | O | 24 |
| 15 | RU | 24 |
| 16 | RU | 24 |
| 17 | RU | 24 |
| 18 | RU | 24 |
| 19 | RU | 24 |

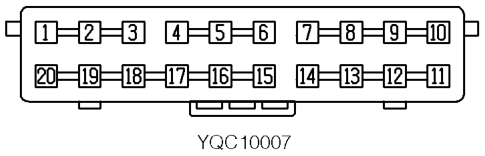

Description: Header

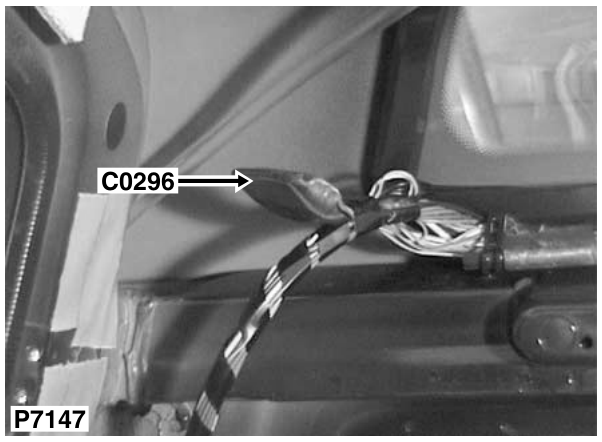

Location: Behind LH rear trim panel
Colour: BLACK Gender: Female
