Colour: YELLOW Gender: Female

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

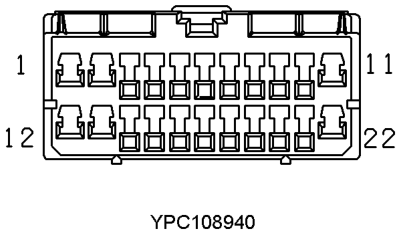

C0661 Body control unit (BCU) - LHD › Colour: YELLOW Gender: Female

ConnectorsColour: YELLOW Gender: Female

Cav 1	Col SK	Cct ALL
3	PO	37
4	K	ALL
5	PS	ALL
6	BN	ALL
7	GP	ALL
8	GN	1
9	WG	13
10	LGS	ALL
11	LGO	ALL
12	KN	41
13	PS	41
14	PG	37
15	NP	ALL
16	GS	3
18	SR	37
19	P	ALL
20	BS	ALL
21	WLG	ALL
22	US	ALL

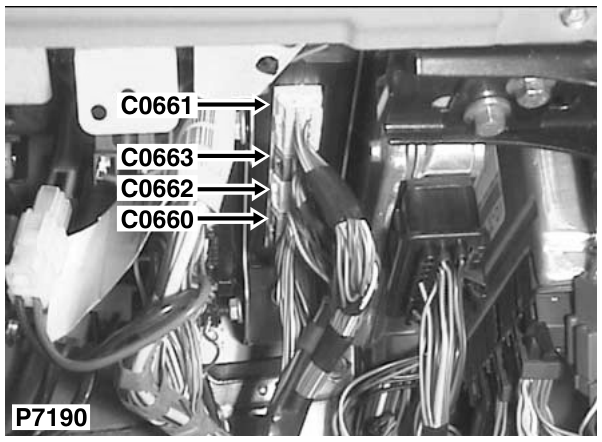

Description: Body control unit (BCU) - LHD Location: Behind RH side of fascia

Colour: YELLOW Gender: Female
