Colour: YELLOW Gender: Female

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0661 Body control unit (BCU) - RHD › Colour: YELLOW Gender: Female

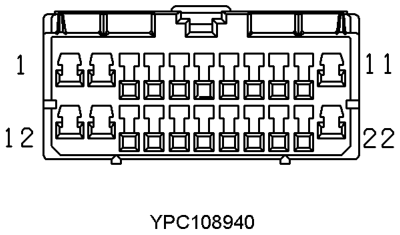

ConnectorsColour: YELLOW Gender: Female

Cav 1	Col SK	Cct ALL
3	PO	ALL
4	K	ALL
5	PS	ALL
6	BN	ALL
7	GP	ALL
8	GN	ALL
9	WG	13
10	LGS	ALL
11	LGO	ALL
12	KN	41
13	PS	41
14	PG	ALL
15	NP	ALL
16	GS	3
18	SR	ALL
19	P	ALL
20	BS	ALL
21	WLG	ALL
22	US	ALL

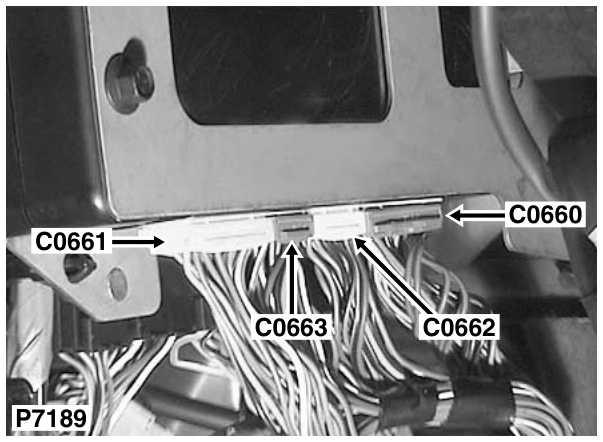

Description: Body control unit (BCU) - RHD Location: Behind LH side of fascia

Colour: YELLOW Gender: Female

05 General
