Colour: WHITE Gender: Female

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0662 Body control unit (BCU) - LHD › Colour: WHITE Gender: Female

ConnectorsColour: WHITE Gender: Female

Cav 1	Col BR	Cct ALL
2	WP	ALL
3	OB	ALL
4	PO	ALL
5	BO	ALL
6	UG	9
7	YK	ALL
8	UP	ALL
9	UP	9
10	GB	9
11	BLG	34
12	LG	ALL
13	UB	9
15	BK	34
16	RW	ALL

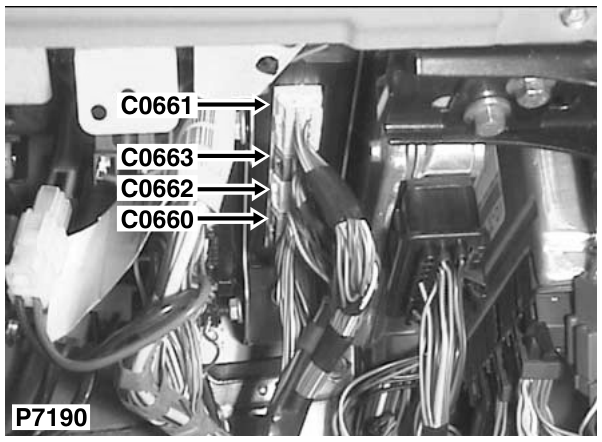

Description: Body control unit (BCU) - LHD Location: Behind RH side of fascia

Colour: WHITE Gender: Female
