Colour: WHITE Gender: Female
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0662 Body control unit (BCU) - RHD › Colour: WHITE Gender: Female
ConnectorsColour: WHITE Gender: Female
| Cav 1 | Col BR | Cct ALL |
| 2 | WP | ALL |
| 3 | OB | ALL |
| 4 | PO | ALL |
| 5 | BO | ALL |
| 6 | UG | 9 |
| 7 | YK | ALL |
| 8 | UP | ALL |
| 9 | UP | 9 |
| 10 | GB | 9 |
| 11 | BLG | 9 |
| 12 | LG | ALL |
| 13 | UB | 9 |
| 15 | BK | 9 |
| 16 | RW | ALL |

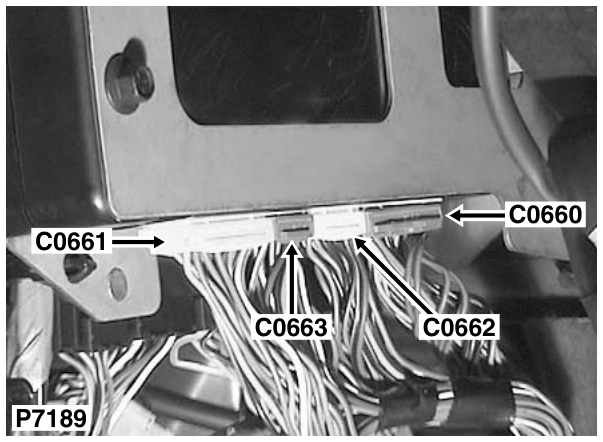

Description: Body control unit (BCU) - RHD Location: Behind LH side of fascia
Colour: WHITE Gender: Female
