Description: Module-Ultrasonic-Rear
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0719 Module-Ultrasonic-Rear › Description: Module-Ultrasonic-Rear

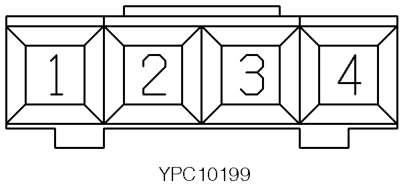

ConnectorsDescription: Module-Ultrasonic-Rear
| Cav 1 | Col SP | Cct ALL |
| 2 | B | ALL |
| 3 | WB | ALL |
| 4 | SP | ALL |
Description: Module-Ultrasonic-Rear

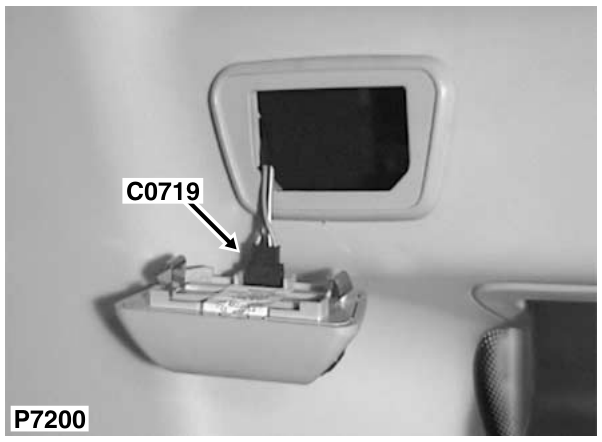

Location: Behind RH rear trim panel
Colour: BLACK Gender: Female
