Description: Header

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0723 Header › Description: Header

ConnectorsDescription: Header

Cav 1	Col RO	Cct ALL
2	RO	ALL
3	RO	ALL
4	GW	ALL
5	GW	ALL
6	GW	ALL
7	PU	ALL
8	PU	ALL
9	PU	ALL
10	PU	ALL
11	GP	ALL
12	GP	ALL
13	GP	ALL
14	GP	ALL
15	P	ALL
16	P	ALL
18	P	ALL
20	P	ALL

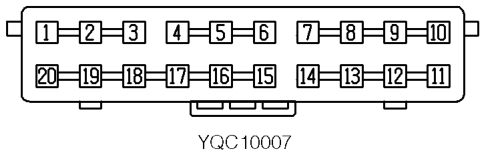

Description: Header

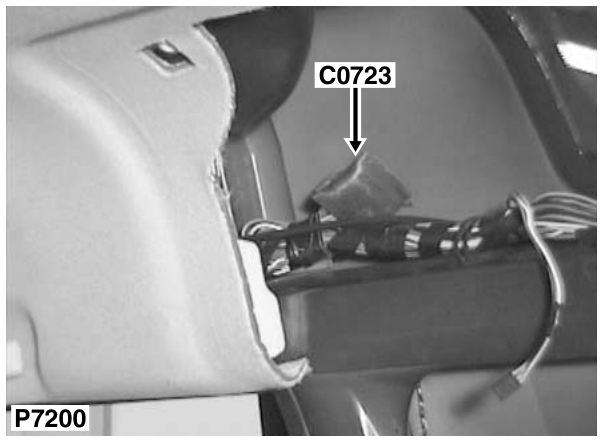

Location: Behind RH rear trim panel

Colour: BLACK Gender: Female

05 General
