Description: Header
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0724 Header › Description: Header
ConnectorsDescription: Header
| Cav 1 | Col RB | Cct ALL |
| 2 | RB | ALL |
| 3 | RB | ALL |
| 4 | RB | 9 |
| 5 | OP | 43 |
| 6 | OP | 43 |
| 7 | OP | 43 |
| 8 | UP | 9 |
| 9 | UP | 9 |
| 10 | UP | 9 |
| 11 | UB | 9 |
| 12 | UB | 9 |
| 13 | UB | 9 |
| 14 | UW | 9 |
| 15 | UW | 9 |
| 16 | UW | 9 |
| 18 | UG | 9 |
| 19 | UG | 9 |
| 20 | UG | 9 |

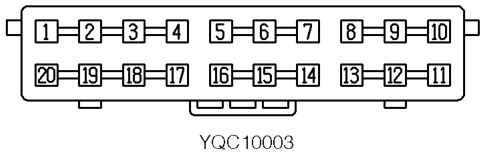

Description: Header

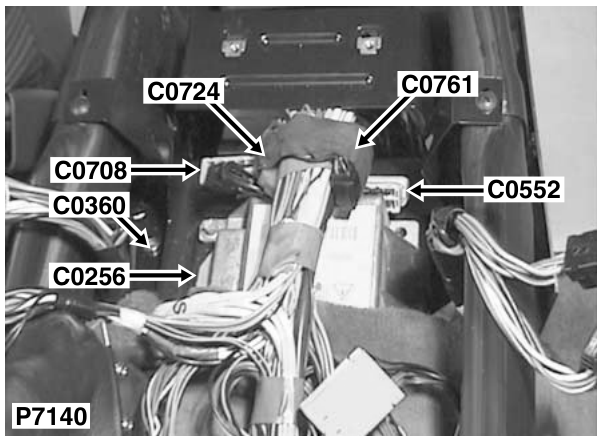

Location: Beneath centre console
Colour: ORANGE Gender: Female
