Description: Header

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0725 Header › Description: Header

ConnectorsDescription: Header

Cav 1	Col P	Cct ALL
2	P	ALL
6	P	ALL
7	P	15
8	P	31
9	B	ALL
10	B	ALL
11	B	16
12	B	ALL
13	B	ALL
14	B	ALL
15	B	ALL
16	B	ALL
17	B	ALL
18	B	ALL
19	B	ALL
20	B	ALL

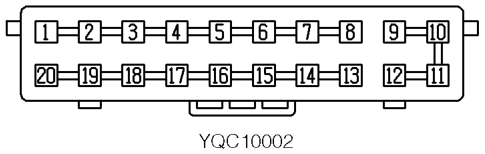

Description: Header

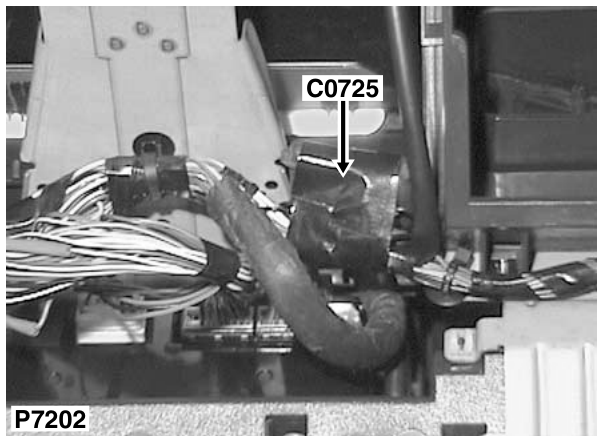

Location: Behind RH side of fascia

Colour: GREY Gender: Female

05 General
