Description: Header

Make

Land Rover

Model

Discovery II Electrical Library

Year

1999–2003

Section

C0759 Header › Description: Header

ConnectorsDescription: Header

Cav 1	Col RN	Cct ALL
2	RN	ALL
3	RN	ALL
4	RN	ALL
5	RN	ALL
6	RN	16
7	RN	35
8	RN	ALL
9	RO	ALL
10	RB	ALL
11	RO	36
12	RO	ALL
13	RN	36
13	RO	46
14	RN	ALL
15	RN	ALL
16	RN	ALL
17	RN	ALL
18	RN	ALL
19	RN	ALL
20	RN	ALL

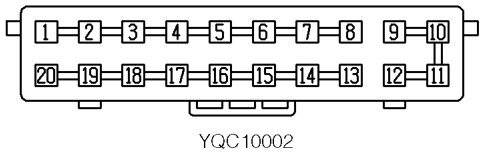

Description: Header

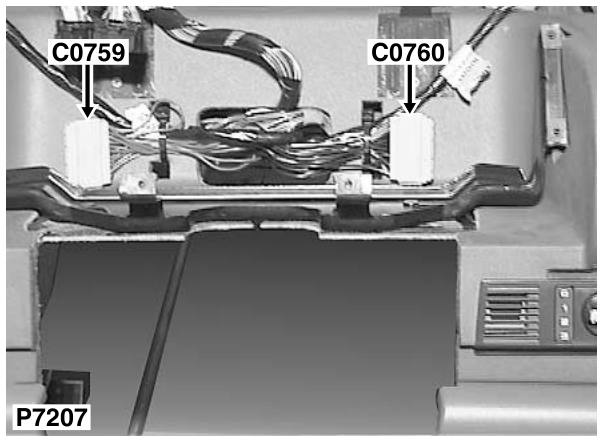

Location: Behind instrument pack

Colour: GREY Gender: Female

05 General
