Description: Header
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0760 Header › Description: Header
ConnectorsDescription: Header
| Cav 1 | Col B | Cct ALL |
| 2 | B | ALL |
| 3 | B | 36 |
| 4 | B | ALL |
| 5 | B | ALL |
| 6 | B | ALL |
| 7 | B | ALL |
| 8 | B | ALL |
| 9 | LG | ALL |
| 10 | LG | ALL |
| 11 | LG | ALL |
| 13 | B | ALL |
| 14 | B | ALL |
| 15 | B | ALL |
| 16 | B | ALL |
| 17 | B | 15 |
| 18 | B | 35 |
| 19 | B | ALL |
| 20 | B | ALL |

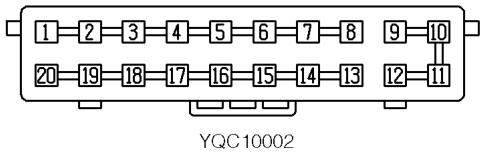

Description: Header

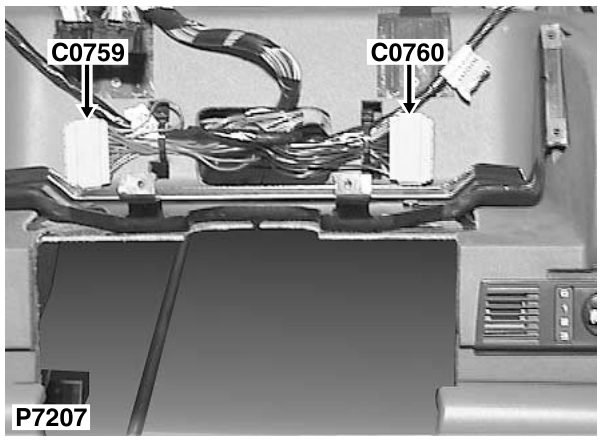

Location: Behind instrument pack
Colour: GREY Gender: Female
