Description: Header
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0761 Header › Description: Header
ConnectorsDescription: Header
| Cav 1 | Col BU | Cct ALL |
| 2 | BU | ALL |
| 3 | BU | ALL |
| 4 | UG | 9 |
| 4 | RU | 24 |
| 5 | UG | 9 |
| 5 | RU | 24 |
| 6 | UG | 9 |
| 6 | RU | 24 |
| 7 | KR | ALL |
| 8 | KR | ALL |
| 9 | KR | ALL |
| 11 | LGW | 42 |
| 12 | LGW | 42 |
| 13 | LGW | 42 |
| 15 | RN | 42 |
| 16 | RN | 42 |
| 17 | RN | ALL |
| 18 | RN | ALL |
| 19 | RN | ALL |
| 20 | RN | ALL |

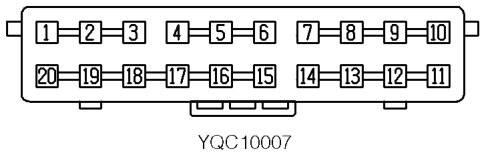

Description: Header

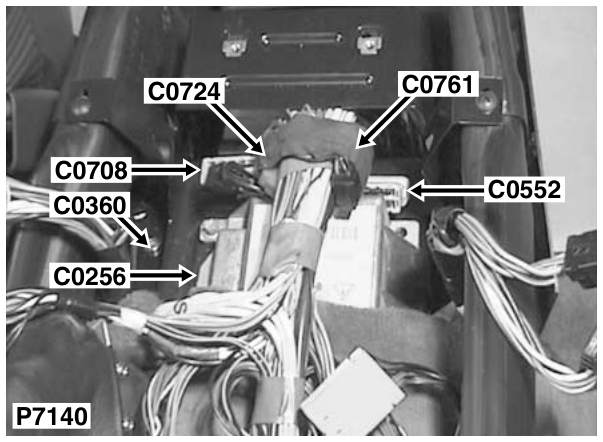

Location: Beneath centre console
Colour: BLACK Gender: Female
