Colour: NATURAL Gender: Female
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0765 Fascia harness to heater harness › Colour: NATURAL Gender: Female
ConnectorsColour: NATURAL Gender: Female
| Cav 1 | Col GR | Cct ALL |
| 2 | N | 15 |
| 3 | PG | 15 |
| 4 | G | 15 |
| 5 | UR | 15 |
| 6 | RG | 15 |
| 7 | UB | 15 |

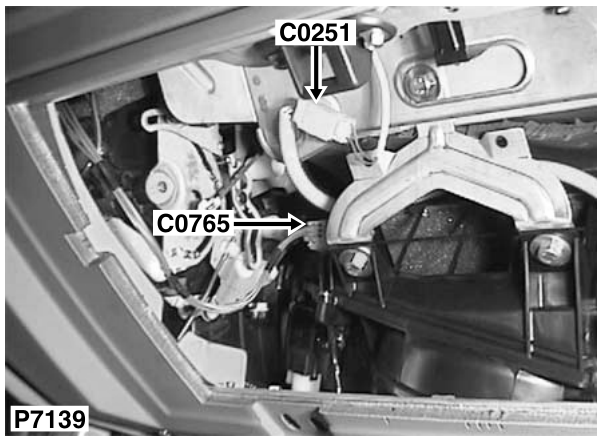

Description: Fascia harness to heater harness Location: Behind glovebox
Colour: NATURAL Gender: Female
