Colour: NATURAL Gender: Female
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0766 Fascia harness to heater harness › Colour: NATURAL Gender: Female

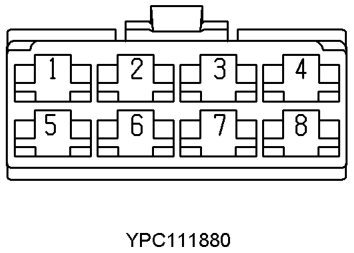

ConnectorsColour: NATURAL Gender: Female
| Cav 1 | Col BO | Cct 16 |
| 2 | G | 16 |
| 3 | PU | 16 |
| 4 | N | 16 |
| 5 | GR | 16 |
| 6 | UB | 16 |
| 7 | B | 16 |
| 8 | RG | 16 |

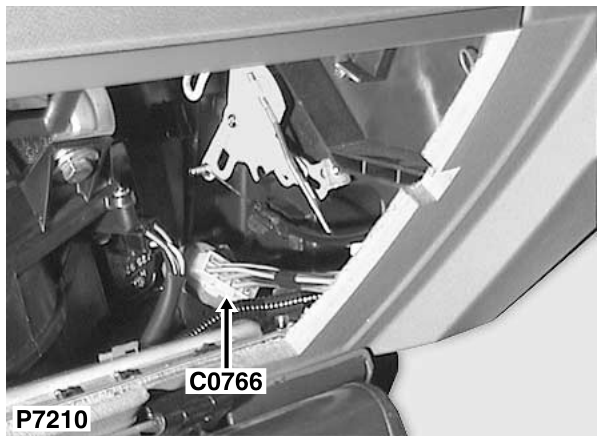

Description: Fascia harness to heater harness Location: Behind LH side of fascia
Colour: NATURAL Gender: Female
