Colour: BLACK Gender: Female
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0792 ECU-Air temperature control (ATC) › Colour: BLACK Gender: Female
ConnectorsColour: BLACK Gender: Female
| Cav 1 | Col RB | Cct 15 |
| 2 | KG | 15 |
| 3 | B | 15 |
| 4 | UY | 15 |
| 5 | RU | 15 |
| 6 | YG | 15 |
| 7 | WB | 15 |
| 8 | PG | 15 |
| 11 | PS | 15 |
| 12 | NP | 15 |
| 13 | PG | 15 |
| 14 | SU | 15 |
| 15 | YG | 15 |
| 16 | WU | 15 |
| 17 | WR | 15 |
| 18 | PB | 15 |

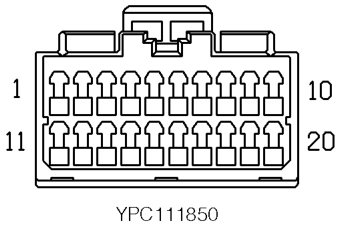

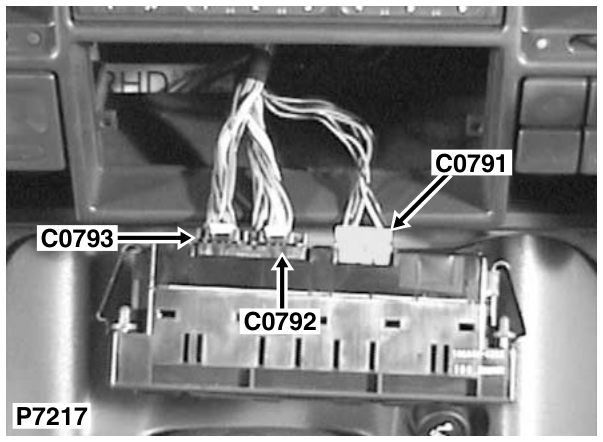

Description: ECU-Air temperature control (ATC) Location: Behind heater control panel
Colour: BLACK Gender: Female
