Colour: BLACK Gender: Female
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0793 ECU-Air temperature control (ATC) › Colour: BLACK Gender: Female
ConnectorsColour: BLACK Gender: Female
| Cav 1 | Col G | Cct 15 |
| 2 | N | 15 |
| 3 | KO | ALL |
| 4 | NB | ALL |
| 5 | PY | 15 |
| 6 | UO | 15 |
| 7 | UW | 15 |
| 8 | RG | 15 |
| 9 | GO | 15 |
| 10 | UR | 15 |
| 11 | YB | 15 |
| 12 | PW | 15 |
| 13 | Y | 15 |
| 14 | GU | 15 |
| 15 | US | 15 |
| 16 | UB | 15 |

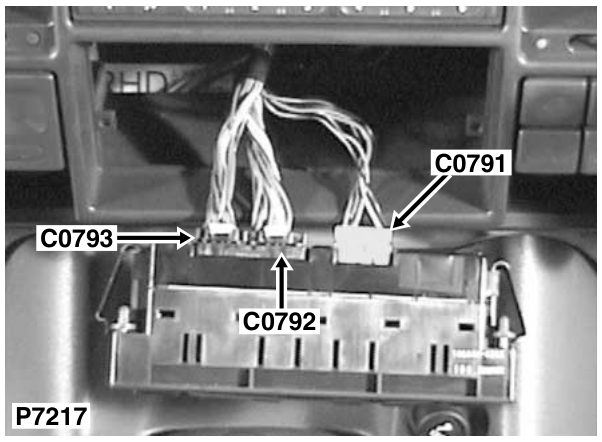

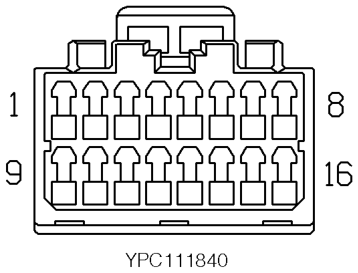

Description: ECU-Air temperature control (ATC) Location: Behind heater control panel
Colour: BLACK Gender: Female
