Description: Head Unit-Audio System
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0921 Head Unit-Audio System › Description: Head Unit-Audio System
ConnectorsDescription: Head Unit-Audio System
| Cav 1 | Col R | Cct 24 |
| 2 | U | 24 |
| 3 | SO | 27 |
| 4 | W | 24 |
| 5 | P | 24 |
| 6 | YG | 27 |
Description: Head Unit-Audio System

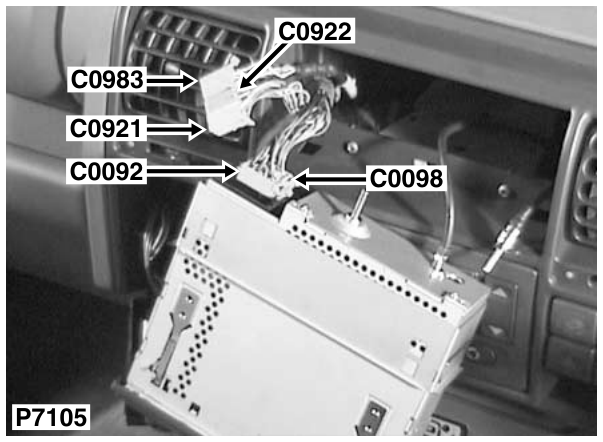

Location: Behind radio
Colour: YELLOW Gender: Female
