Description: Head Unit-Audio System
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0922 Head Unit-Audio System › Description: Head Unit-Audio System
ConnectorsDescription: Head Unit-Audio System
| Cav 7 | Col O | Cct 24 |
| 9 | SG | 24 |
| 10 | G | 24 |
| 11 | S | 24 |
| 11 | B | 31 |
| 12 | Y | 24 |
| 12 | K | 31 |
Description: Head Unit-Audio System

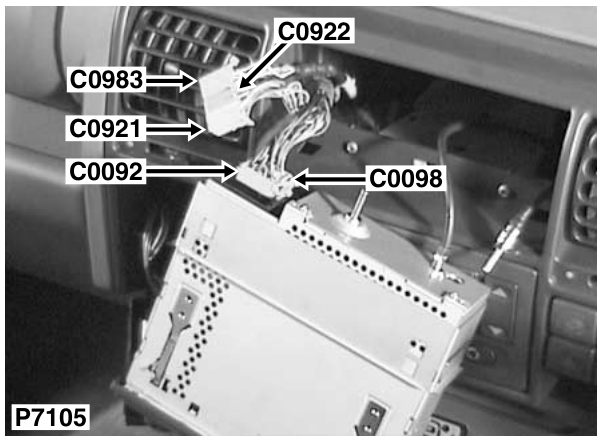

Location: Behind radio
Colour: GREEN Gender: Female
