Description: Head Unit-Audio System
- Make
- Land Rover
- Model
- Discovery II Electrical Library
- Year
- 1999–2003
- Section
- C0923 Head Unit-Audio System › Description: Head Unit-Audio System
ConnectorsDescription: Head Unit-Audio System
| Cav 1 | Col BW | Cct 29 |
| 2 | BK | 29 |
| 3 | BY | 29 |
| 4 | PO | 29 |
| 5 | LGP | 29 |
| 6 | BG | 29 |
| 8 | BN | 29 |
| 9 | P | 29 |
| 10 | SR | 29 |
| 11 | BR | 29 |
| 12 | BO | 29 |
| 13 | RN | 29 |
| 14 | BU | 29 |
| 15 | B | 29 |
| 16 | RU | 29 |
| 17 | SB | 29 |
Description: Head Unit-Audio System

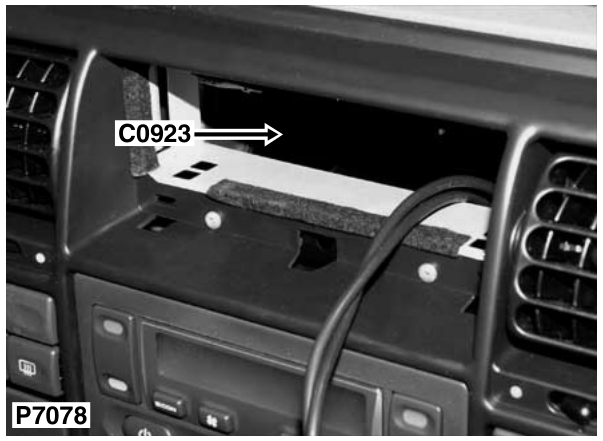

Location: Behind radio
Colour: BLACK Gender: Female
