Discovery II
INTERIOR TRIM COMPONENTS
REPAIRS 76-3-19
Carpet - rear
$% 76.49.03
Remove
1. Models with premium ICE: Remove power
2. Remove RH front seat.
3. Remove both 'B' post lower trim panels.
REPAIRS, Trim casing - lower - 'B' post.

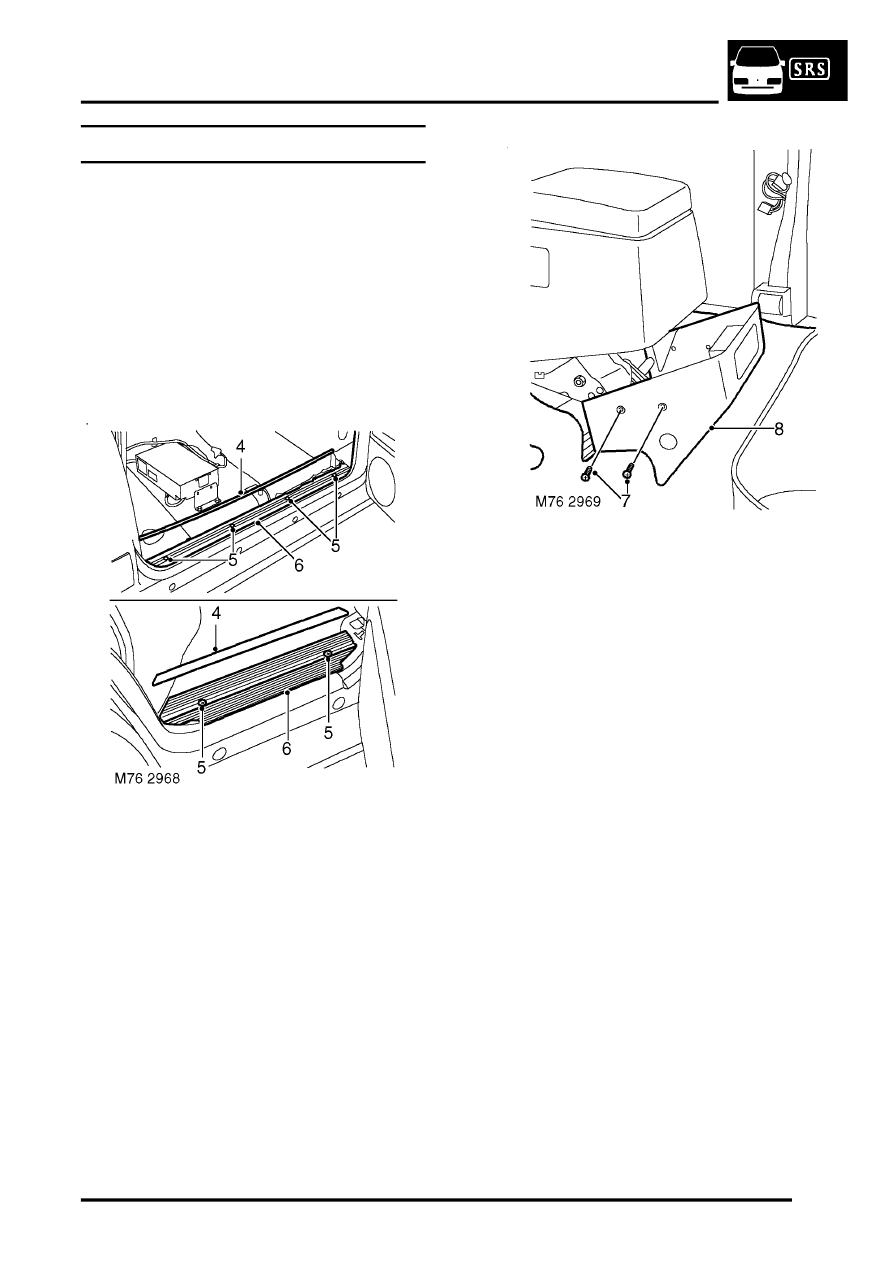

4. Remove finishers from front and rear carpet
retainers.
5. Remove 12 screws securing front and rear
carpet retainers to floor.
6. Remove front and rear carpet retainers.
7. Remove 4 screws securing trim panel to rear of
centre console.
8. Remove trim panel.
9. Position harnesses clear of rear carpet.
10. Remove rear carpet.
Refit
1. Position new rear carpet.
2. Fit front and rear carpet retainers to floor and
secure with screws.
3. Fit finishers to front and rear carpet retainers
4. Position trim panel to rear of centre console
and secure with screws.
5. Fit lower 'B' post trim panels.
REPAIRS, Trim casing - lower - 'B' post.
6. Fit RH front seat to floor.
7. Models with premium ICE: Fit power
