Discovery II
INTERIOR TRIM COMPONENTS
76-3-18 REPAIRS
Carpet - front
$% 76.49.02
Remove
1. Models with premium ICE: Remove power
amplifier.
2. Models with premium ICE: Remove CD
autochanger.
3. Remove centre console.
l
For models with manual gearbox:
REPAIRS, Console - centre - manual
models.
l
For models with automatic gearbox:
REPAIRS, Console - centre - automatic
models.
4. Remove both lower 'A' post trim panels.

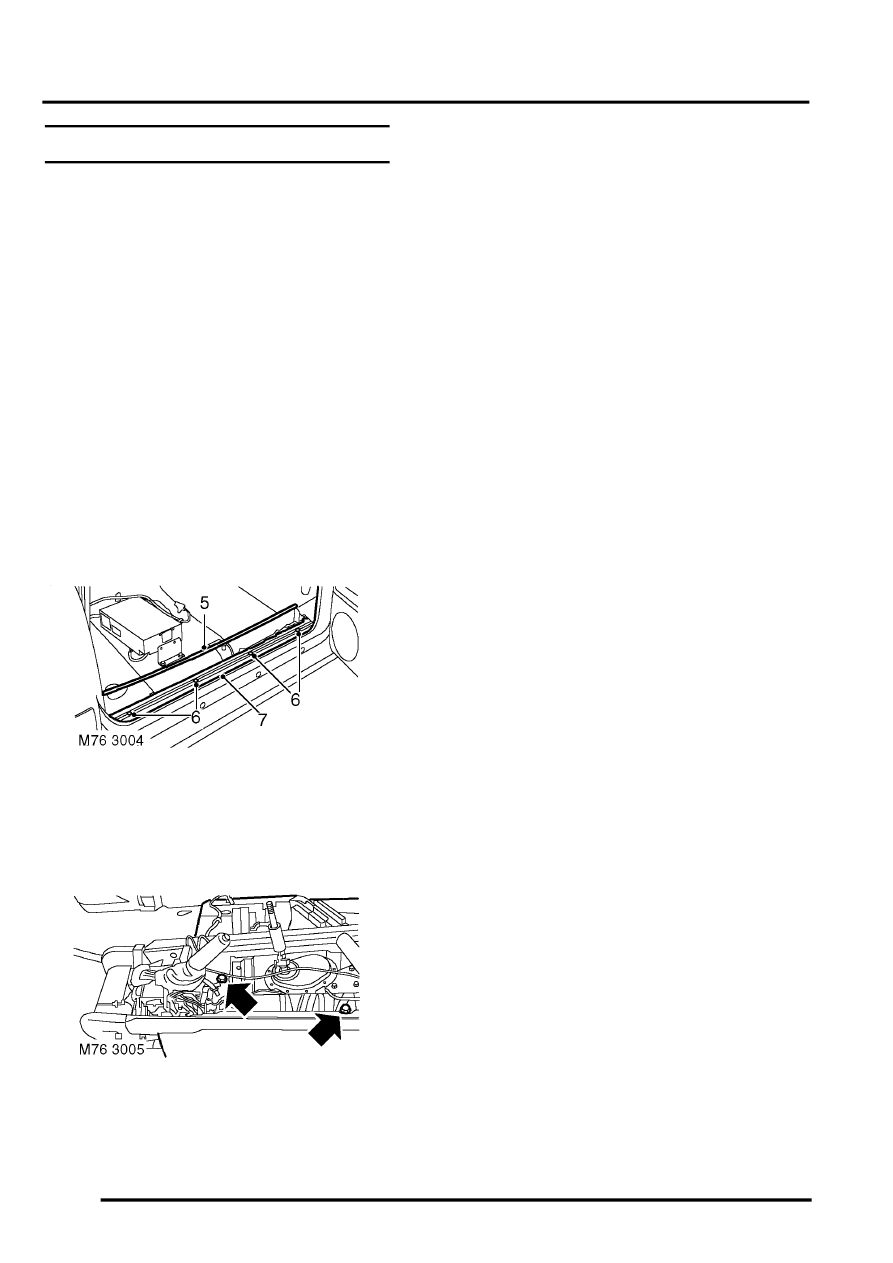

5. Remove finisher from both front carpet
retainers.
6. Remove 8 screws securing front carpet
retainers to floor.
7. Remove front carpet retainers.
8. Remove 2 nuts securing main body harness to
transmission tunnel.
9. With assistance release and remove carpet.
Refit
1. With assistance position carpet.
2. Secure main body harness to transmission
tunnel with nuts.
3. Position front carpet retainers and secure to
floor with screws.
4. Fit finishers to front carpet retainers
5. Fit both lower 'A' post trim panels.
6. Fit centre console.
l
For models with manual gearbox:
REPAIRS, Console - centre - manual
models.
l
For models with automatic gearbox:
REPAIRS, Console - centre - automatic
models.
7. Models with premium ICE: Fit CD
8. Models with premium ICE: Fit power
