Discovery II
INTERIOR TRIM COMPONENTS
REPAIRS 76-3-15

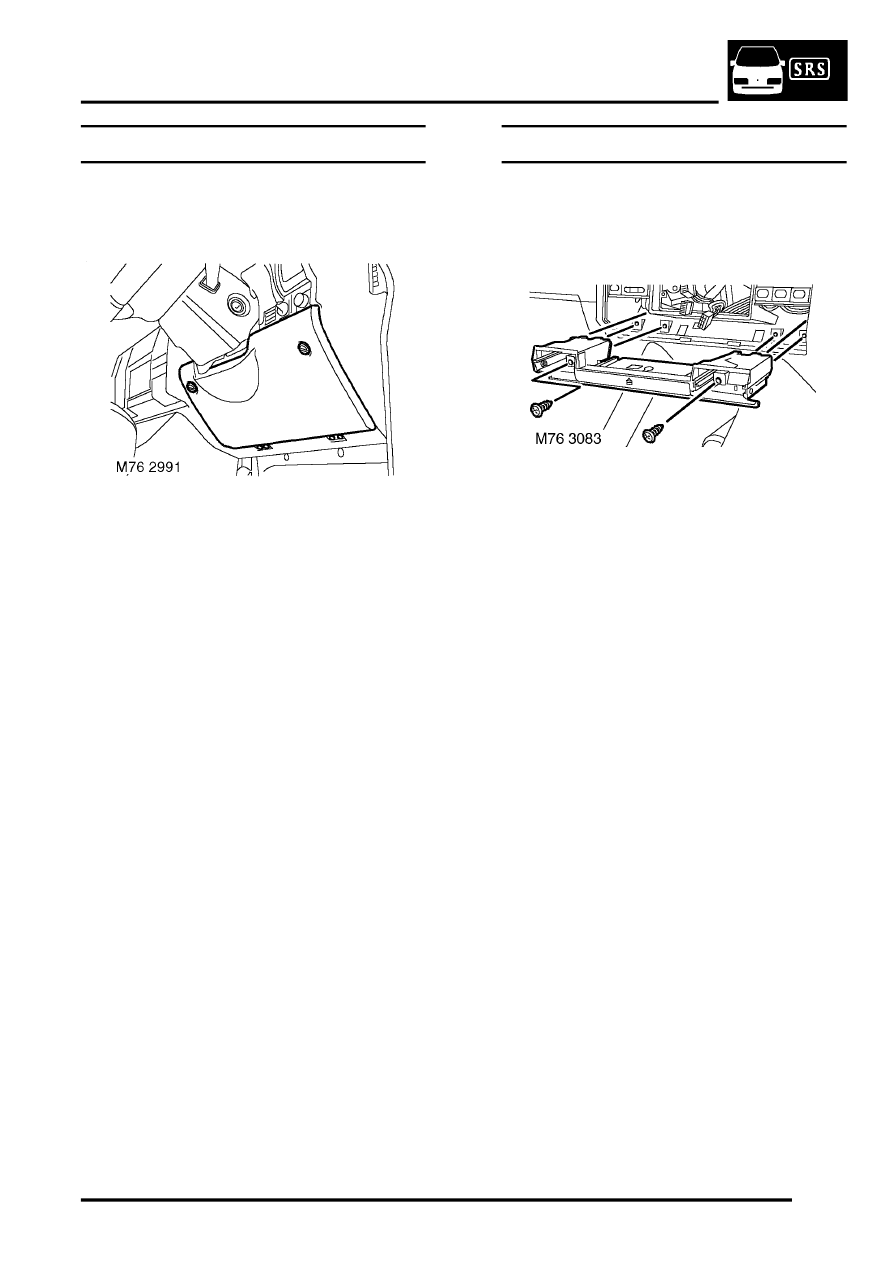

Panel - fascia access - driver's side
$% 76.46.40
Remove
1. Remove 4 bolts securing fascia access panel to
fascia.
2. Release 2 quarter turn screws securing fascia
access panel to fascia.
3. Remove fascia access panel.
Refit
1. Position fascia access panel to fascia and
secure with quarter turn screws.
2. Position base of fascia access panel to fascia
and secure with bolts.
Drink tray assembly - centre fascia
$% 76.46.41
Remove
1. Remove coin tray and ash tray.
2. Remove 6 screws securing drink tray assembly
to fascia.
3. Remove drink tray.
Refit
1. Position drink tray assembly to fascia and
secure with screws.
2. Fit ash tray and coin tray to drink tray assembly.
