Discovery II
PANEL REPAIRS
77-2-46 REPAIRS
'E' post assembly
In this procedure, the panel body side assembly and
tail door are replaced in conjunction with the 'E' post
assembly. If required the 'E' post closing assembly
can also be replaced.
Remove
1. Disconnect both battery leads, negative lead
first.
2. Disconnect leads/multiplug from alternator.
3. Remove panel body side assembly.
4. Remove rear seats.
5. Remove loadspace carpet.
6. Remove third row seat belts.
7. Remove relevant wiring.
8. Remove rear drip rail finisher.
Repair
1. Remove existing panel(s), prepare panel joint
faces and install new panel(s) in accordance

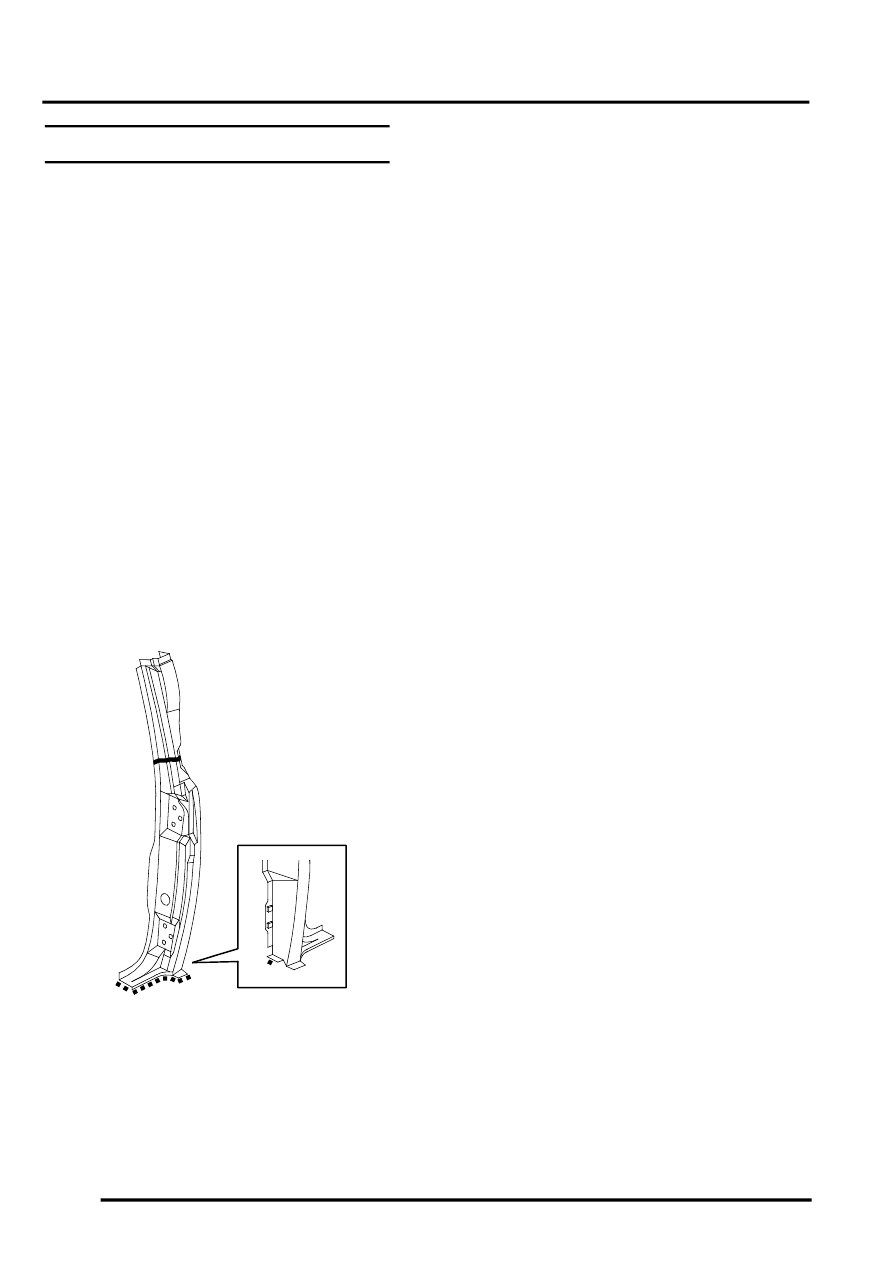

with Panel Replacement Procedure. Punch or
drill holes in new panel for plug welding as
shown.
Refit
1. Fit rear drip rail finisher.
2. Fit and secure wiring.
3. Fit third row seat belts.
4. Fit loadspace carpet.
5. Fit rear seats.
6. Fit panel body side assembly.
7. Connect leads/multiplug to alternator.
8. Connect battery leads, negative lead last.
M77 1701A
