300Tdi Discovery
19
FUEL SYSTEM
22
REPAIR
ADD: 09/95

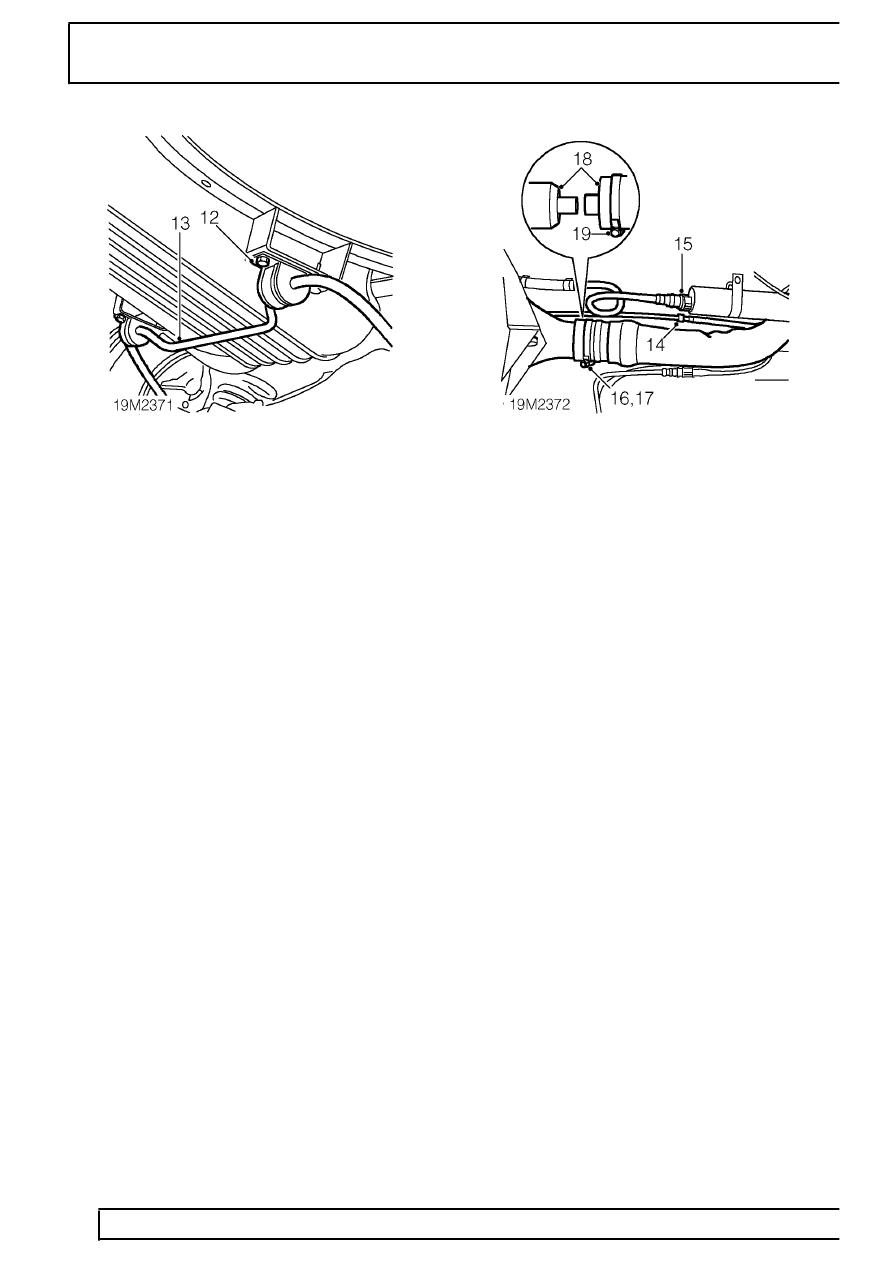

12. Mark location of anti-roll [sway] bar straps.
13. Remove nuts and bolts securing anti-roll [sway]
bar straps, and allow bar to swing down clear of
tank.
14. Disconnect pressure sensor breather pipe
connection.
15. Disconnect vent line quickfit connector from
liquid/vapour separator.
16. Remove torque screw cap from hose to tank
filler neck clip.
17. Loosen clip screw securing hose to tank filler
neck.
18. Release hose from filler neck and internal filler
neck breather hose from fuel tank.
19. Remove and discard fuel filler neck clip.
