Fuse: Locations
- Make
- Land Rover
- Model
- Discovery II (LT)
- Engine
- V8-4.6L
- Year
- 2003
- Section
- Fuse › Locations
Power and Ground DistributionLocations · page 1 of 11
Fuse: Locations – diagram from the Power and Ground Distribution chapter of the Land Rover Discovery II (LT) V8-4.6L (2003) factory manual.
/v8-4.6l/Page-1213001.png)
Fuse: Locations

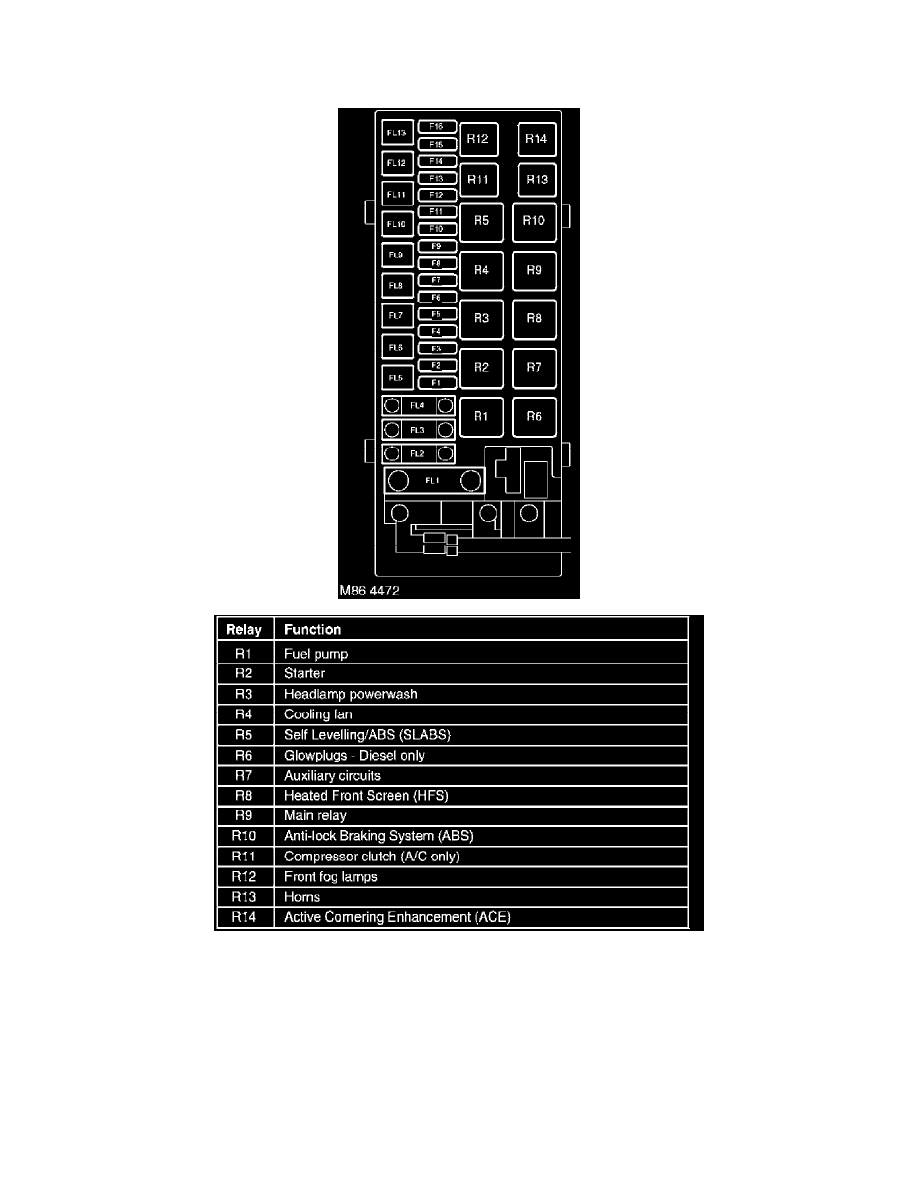

Engine Compartment Fuse Box - right hand side of the engine compartment
Relays
